Cosmo KAQY214S
The KAQY214 series is robust, ideal for telecom and ground fault applications. It is a SPST normally open switch (1 Form A) that replaces electromechanical relays in many applications. It is constructed using a GaAlAs LED for actuation control and an integrated monolithic die for the switch output.| Part No. | KAQY214S |
|---|---|
| Datasheet | KAQY214S Download |
| Manufacturer |  Cosmo |
| Description | SOLID STATE RELAY |
| Buy | Stock & Price |

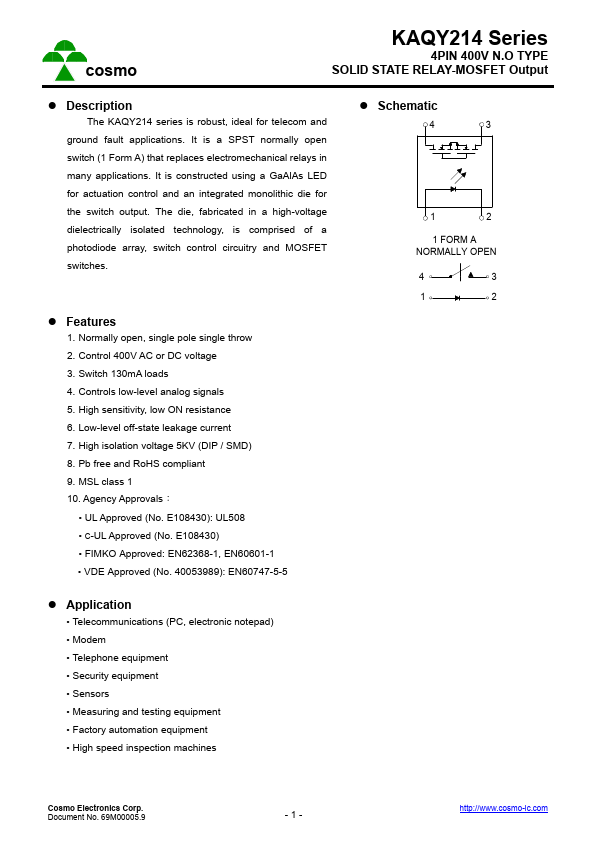

DESCRIPTION
The die, fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches.●
FEATURES
1. Normally open, single pole single throw 2. Control 400V AC or DC voltage 3. Switch 130mA loads 4. Controls low-level analog signals 5. High sensitivity, low ON resistance 6. Low-level off-state leakage current 7. High isolation voltage 5KV (DIP / SMD) 8. Pb free and RoHS compliant 9. MSL class 1 10. Agency Approvals：● UL Approved (No. E108430): UL508
● C-UL Approved (No. E108430)
● FIMKO Approved: EN62368-1, EN60601-1
● VDE Approved (No. 40053989): EN60747-5-5
● Schematic 4 3 1 2 1 FORM A NORMALLY OPEN 4 3 1 2
● Application
● Telecommunications (PC, electronic notepad)
● Modem
● Telephone equipment
● Security equipment
● Sensors
● Measuring and testing equipment
● Factory automation equipment
● High speed inspection machines Cosmo Electronics Corp. Document No. 69M00005.9 -1- cosmo

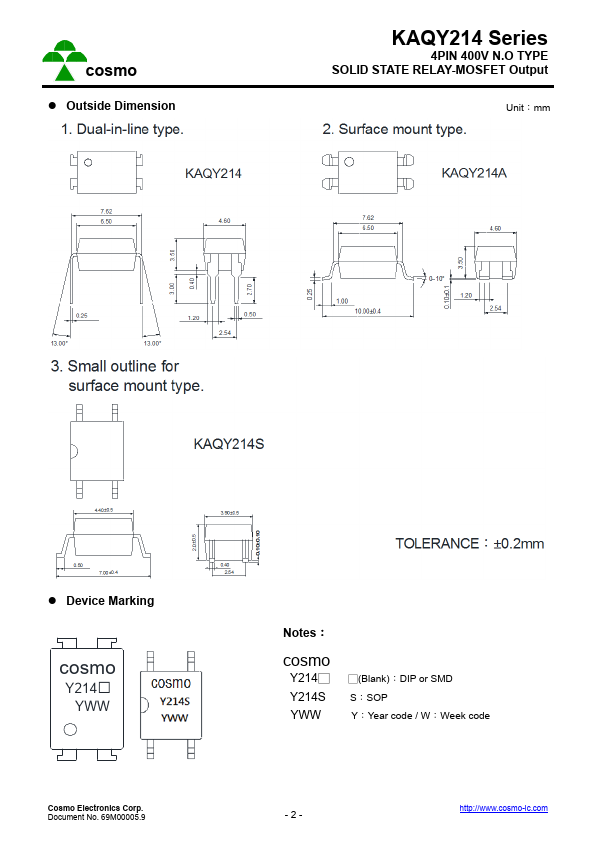

● Outside Dimension KAQY214 Series 4PIN 400V N.O TYPE SOLID STATE RELAY-MOSFET Output Unit：mm
● Device Marking cosmo □ Y214 YWW Cosmo Electronics Corp.
