KP3020H - 8PIN PHOTOTRANSISTOR PHOTOCOUPLER

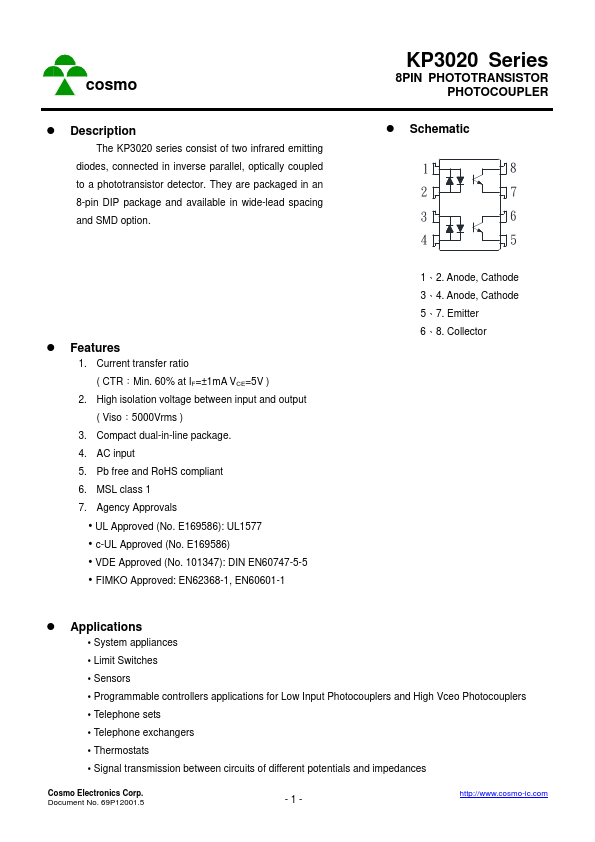

This page provides the datasheet information for the KP3020H, a member of the KP3020 8PIN PHOTOTRANSISTOR PHOTOCOUPLER family.

Description

The KP3020 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector.

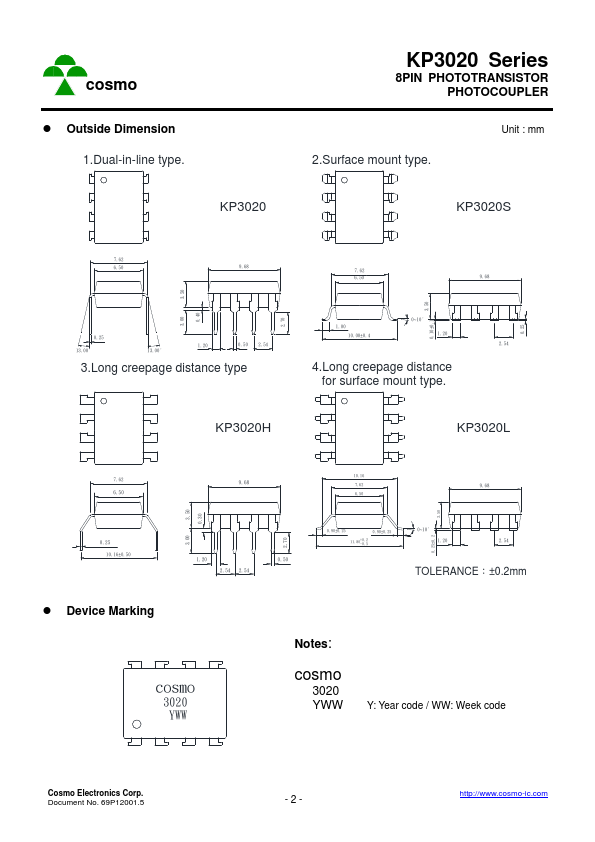

They are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD option.

Schematic 1

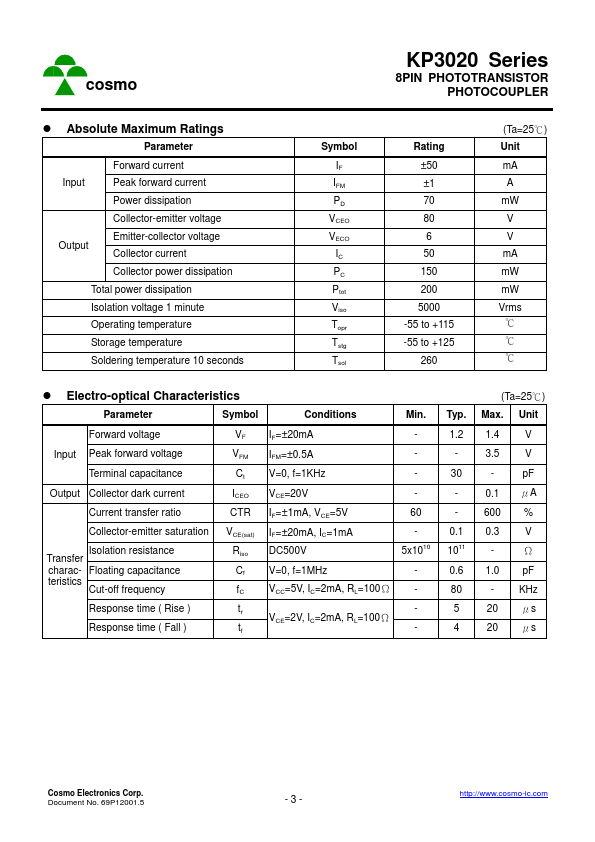

Features

  • s 1. Current transfer ratio ( CTR：Min. 60% at IF=±1mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Compact dual-in-line package. 4. AC input 5. Pb free and RoHS compliant 6. MSL class 1 7. Agency Approvals.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 101347): DIN EN60747-5-5.
  • FIMKO Approved: EN62368-1, EN60601-1 1、2. Anode, Cathode 3、4. Anode, Cathode 5、7. Emitter 6、8. Collector.
