Download the KP3020S datasheet PDF.
This datasheet also covers the KP3020 variant, as both devices belong to the same 8pin phototransistor photocoupler family and are provided as variant models within a single manufacturer datasheet.

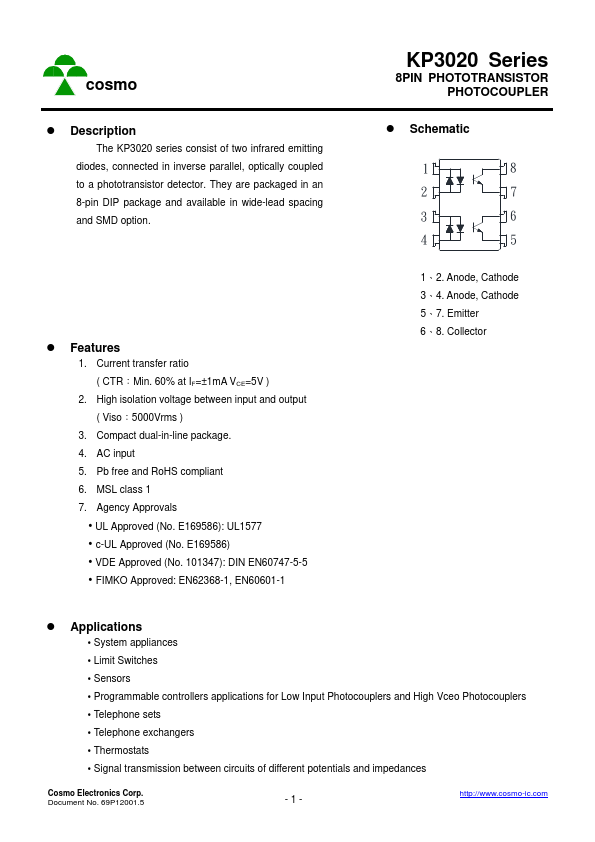

General Description
The KP3020 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector.
They are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD option.
Schematic
1
Key Features
s
1. Current transfer ratio ( CTR：Min. 60% at IF=±1mA VCE=5V )
2. High isolation voltage between input and output ( Viso：5000Vrms )
3. Compact dual-in-line package. 4. AC input 5. Pb free and RoHS compliant 6. MSL class 1 7. Agency Approvals.

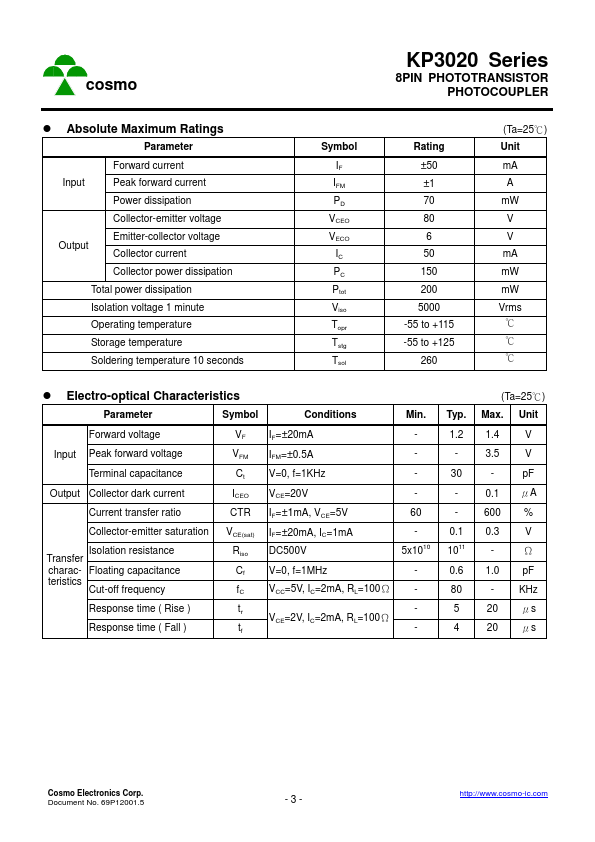

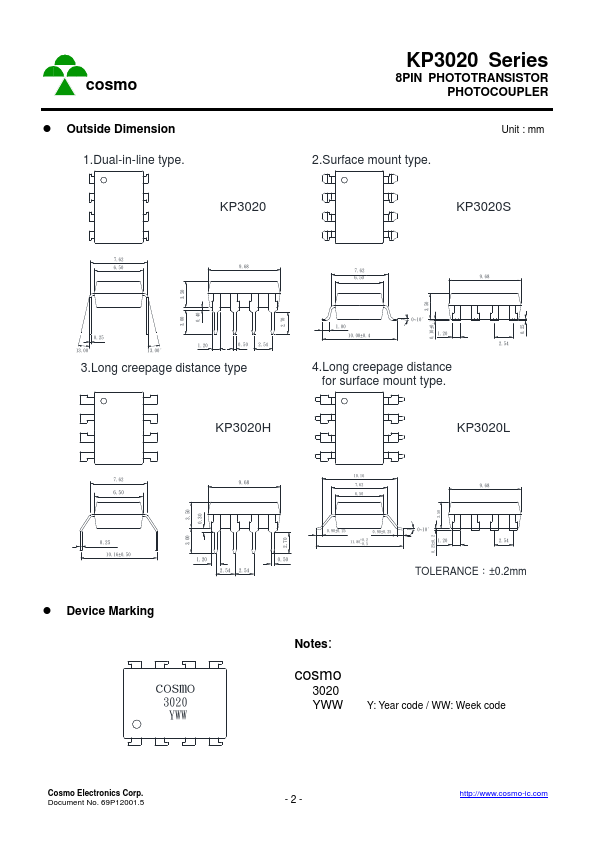

Full PDF Text Transcription for KP3020S (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
KP3020S. For precise diagrams, and layout, please refer to the original PDF.
cosmo Description The KP3020 series consist of two infrared emitting diodes, connected in inverse parallel, optically coupled to a phototransistor detector. They are pa...
View more extracted text
parallel, optically coupled to a phototransistor detector. They are packaged in an 8-pin DIP package and available in wide-lead spacing and SMD option. KP3020 Series 8PIN PHOTOTRANSISTOR PHOTOCOUPLER Schematic 1 8 2 7 3 6 4 5 Features 1. Current transfer ratio ( CTR：Min. 60% at IF=±1mA VCE=5V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Compact dual-in-line package. 4. AC input 5. Pb free and RoHS compliant 6. MSL class 1 7. Agency Approvals • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No. 101347): DIN EN60747-5-5 • FIMKO Approved: EN62368-1, EN60601-1 1
