KPC4N33H - 6PIN PHOTODARLINGTON PHOTOCOUPLER

This page provides the datasheet information for the KPC4N33H, a member of the KPC4N33 6PIN PHOTODARLINGTON PHOTOCOUPLER family.

Description

The KPC4N33 series consist of an arsenide infrared-emitting diode in a 6-pin DIP package and available in wide-lead spacing and SMD option.

The input-output isolation voltage is rated at 5000 Vrms.

Features

  • 1. Current transfer ratio ( CTR：Min. 500% at IF=1mA VCE=2V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Compact dual-in-line package 5. MSL class 1 6. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586) 1. Anode 2. Cathode 3. NC 4. Emitter 5. Collector 6. Base z.

📥 Download Datasheet

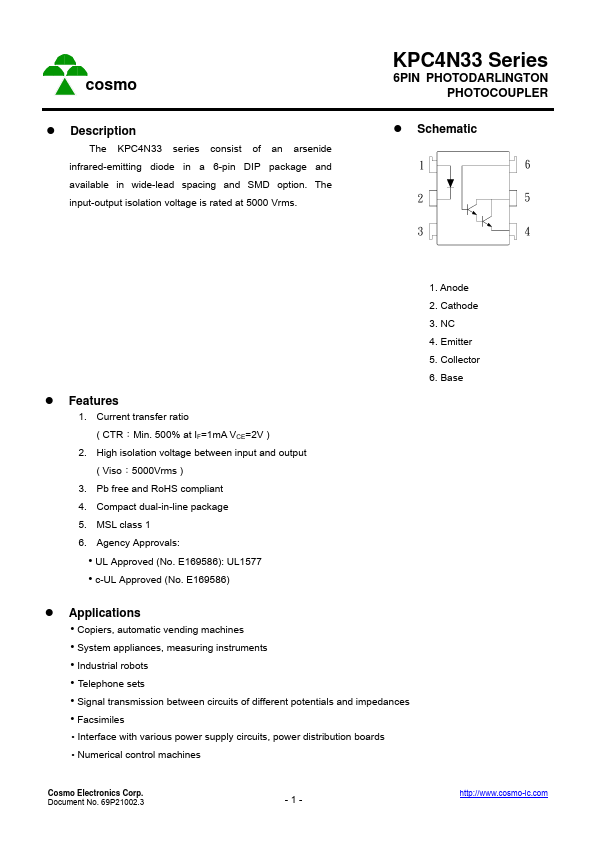

Datasheet preview – KPC4N33H

Datasheet Details

Part number KPC4N33H
Manufacturer Cosmo
File Size 296.15 KB
Description 6PIN PHOTODARLINGTON PHOTOCOUPLER
Datasheet download datasheet KPC4N33H Datasheet

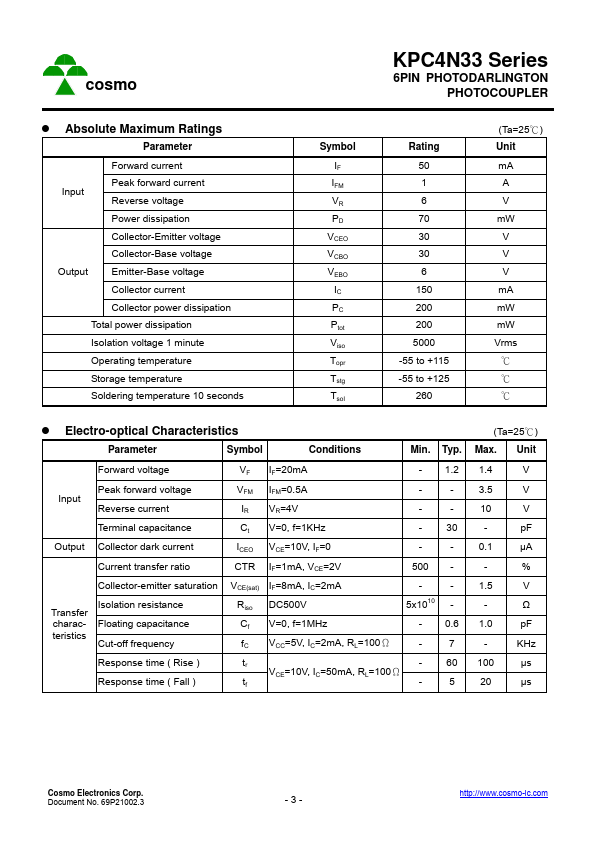

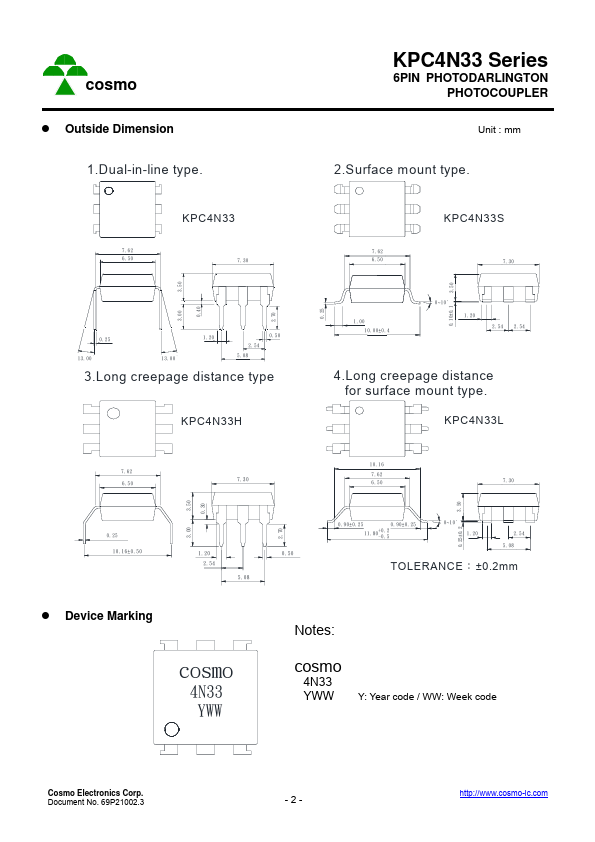

Additional preview pages of the KPC4N33H datasheet.

📁 Similar Datasheet

  • KPC4N33 - 6PIN PHOTODARLINGTON PHOTOCOUPLER (COSMO Electronics)
  • KPC4N33 - High Reliability Photo Coupler (TAITRON)
  • KPC410 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER (COSMO Electronics)
  • KPC452 - 4PIN MINI-FLAT PHOTODARLINGTON PHOTOCOUPLER (COSMO Electronics)
  • KPC457 - 5PIN HIGH-SPEED OUTPUT PHOTOCOUPLER (COSMO Electronics)
  • KPC474x3CD5B7xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)
  • KPC474x3CD5C9xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)
  • KPC474x4AD5B7xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)
  • KPC474x4AD5C9xxxA - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)
  • KPC474x4BD5B7xxxx - SNUBBER CAPACITORS (CAMEL TECHNOLOGY)
Other Datasheets by Cosmo
  • KPC4N33L - 6PIN PHOTODARLINGTON PHOTOCOUPLER
  • KPC4N33S - 6PIN PHOTODARLINGTON PHOTOCOUPLER
  • KPC484 - 5PIN IPM DRIVE PHOTOCOUPLER
  • KPC354NT0A - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER
  • KPC354NT0B - 4PIN MINI-FLAT PHOTOTRANSISTOR PHOTOCOUPLER
  • KPC357NT0T - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER
  • KPC357NT0W - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER
  • KPC357NT0WA - 4PIN MINI-FLAT LOW INPUT CURRENT PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text
cosmo z Description The KPC4N33 series consist of an arsenide infrared-emitting diode in a 6-pin DIP package and available in wide-lead spacing and SMD option. The input-output isolation voltage is rated at 5000 Vrms. KPC4N33 Series 6PIN PHOTODARLINGTON PHOTOCOUPLER z Schematic 1 6 2 5 3 4 z Features 1. Current transfer ratio ( CTR：Min. 500% at IF=1mA VCE=2V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Compact dual-in-line package 5. MSL class 1 6. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) 1. Anode 2. Cathode 3. NC 4. Emitter 5. Collector 6.
