KPC4N33L - 6PIN PHOTODARLINGTON PHOTOCOUPLER

Product Overview

Cosmo

📥 Download Datasheet

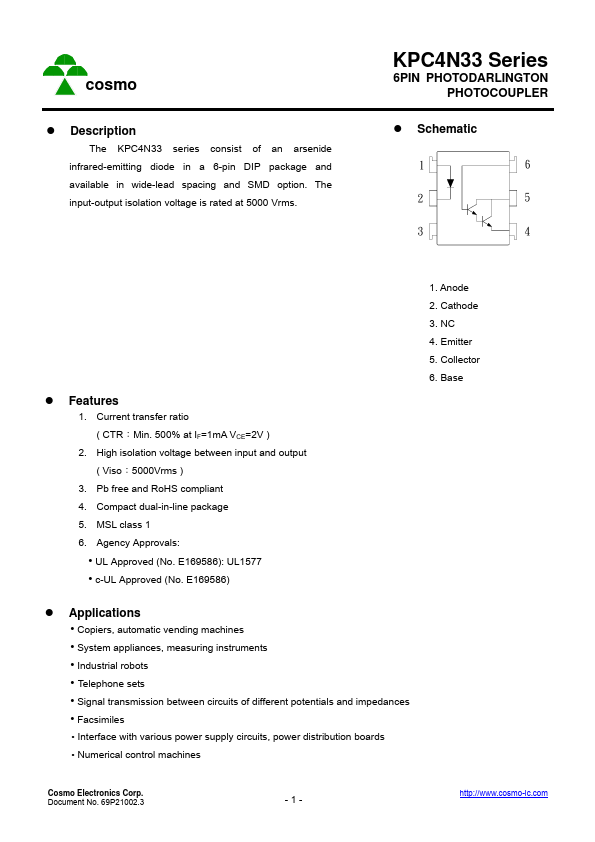

KPC4N33L 6PIN PHOTODARLINGTON PHOTOCOUPLER by Cosmo - Datasheet Preview — Datasheet preview – KPC4N33L

Datasheet Details

Part number	KPC4N33L
Manufacturer	Cosmo
File Size	296.15 KB
Description	6PIN PHOTODARLINGTON PHOTOCOUPLER
Datasheet	KPC4N33L Datasheet
Note	This datasheet PDF includes multiple part numbers: KPC4N33L, KPC4N33. Please refer to the document for exact specifications by model.

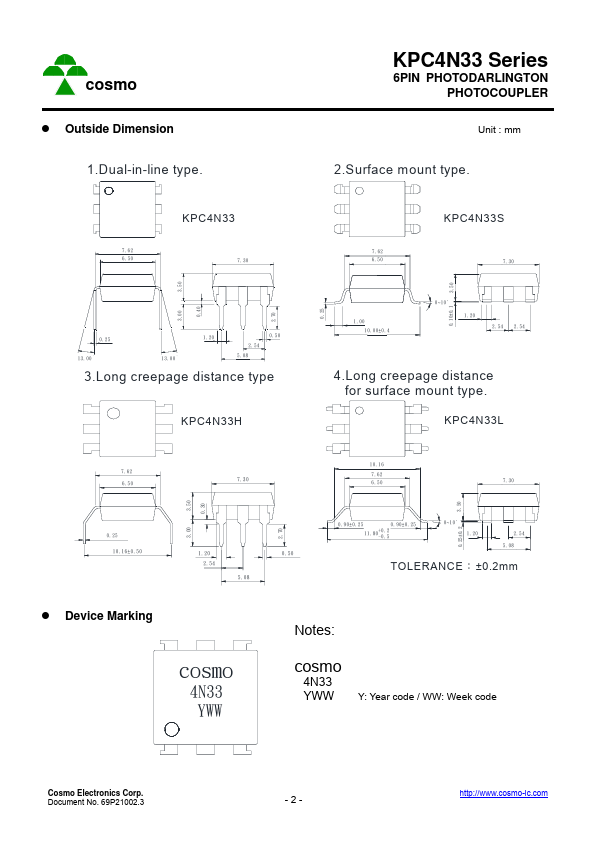

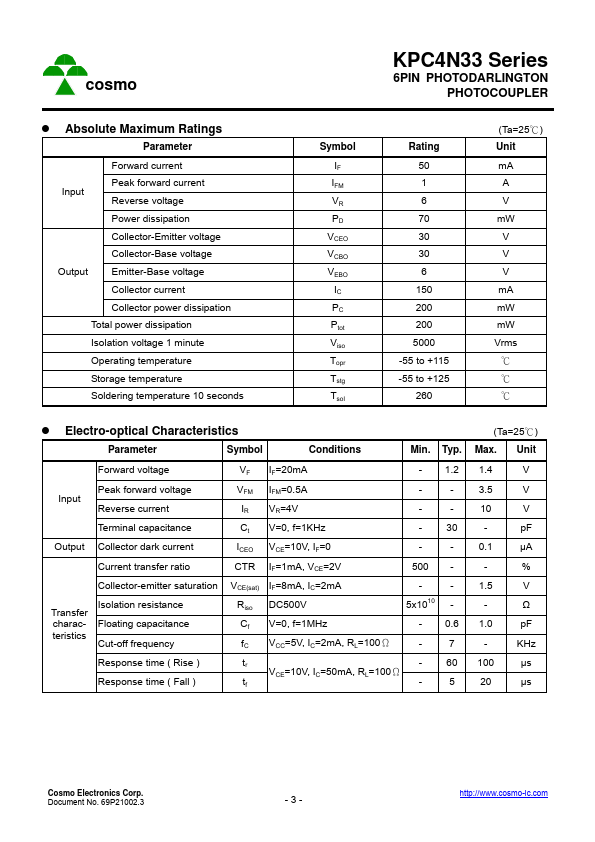

Additional preview pages of the KPC4N33L datasheet.

Product details

Description

The KPC4N33 series consist of an arsenide infrared-emitting diode in a 6-pin DIP package and available in wide-lead spacing and SMD option.

Features

1. Current transfer ratio ( CTR：Min. 500% at IF=1mA VCE=2V ) 2. High isolation voltage between input and output ( Viso：5000Vrms ) 3. Pb free and RoHS compliant 4. Compact dual-in-line package 5. MSL class 1 6. Agency Approvals:.
UL Approved (No. E169586): UL1577.
c-UL Approved (No. E169586) 1. Anode 2. Cathode 3. NC 4. Emitter 5. Collector 6. Base z.
