KTLP350L - 8PIN IGBT GATE DRIVE PHOTOCOUPLER

This page provides the datasheet information for the KTLP350L, a member of the KTLP350 8PIN IGBT GATE DRIVE PHOTOCOUPLER family.

Description

The KTLP350 contain a GaAlAs light emitter diode optically coupled to an integrated circuit with a power output stage.

.

KTLP350 series photo coupler is ideally suited for driving IGBT and power MOSFET used in motor control inverter application and inverter power system.

Features

  • s 1. Input threshold current: IF=5mA(max. ) 2. Supply current (Icc): 3 mA (max. ) 3. Supply voltage (Vcc): 10.
  • 30V 4. Output current (IO): ±2.5A (max. ) 5. Switching time (tpLH/tpHL): 0.5µs(max. ) 6. Isolation voltage: 5000Vrms(min. ) 7. Agency Approvals:.
  • UL Approved (No. E169586): UL1577.
  • c-UL Approved (No. E169586).
  • VDE Approved (No. 40020973): DIN EN60747-5-5.

📥 Download Datasheet

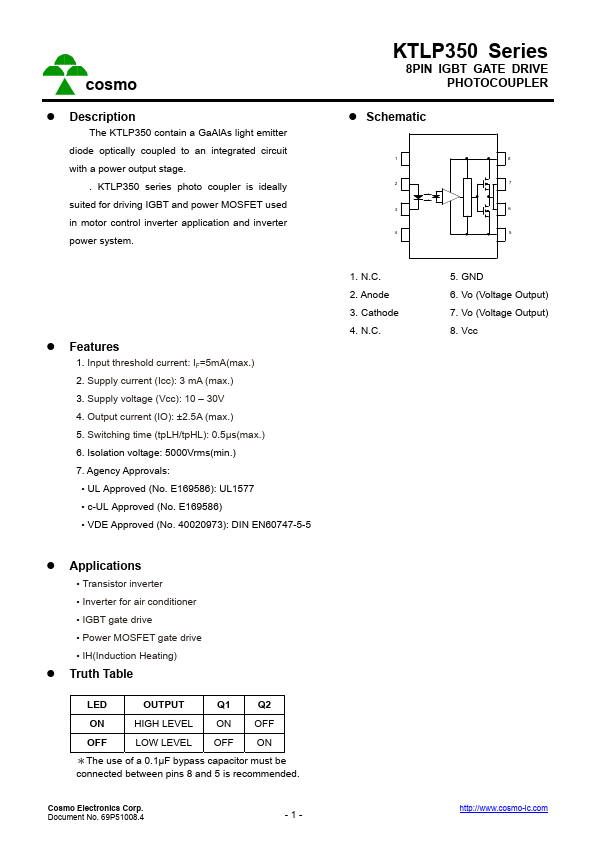

Datasheet preview – KTLP350L

Datasheet Details

Part number KTLP350L
Manufacturer Cosmo
File Size 480.87 KB
Description 8PIN IGBT GATE DRIVE PHOTOCOUPLER
Datasheet download datasheet KTLP350L Datasheet

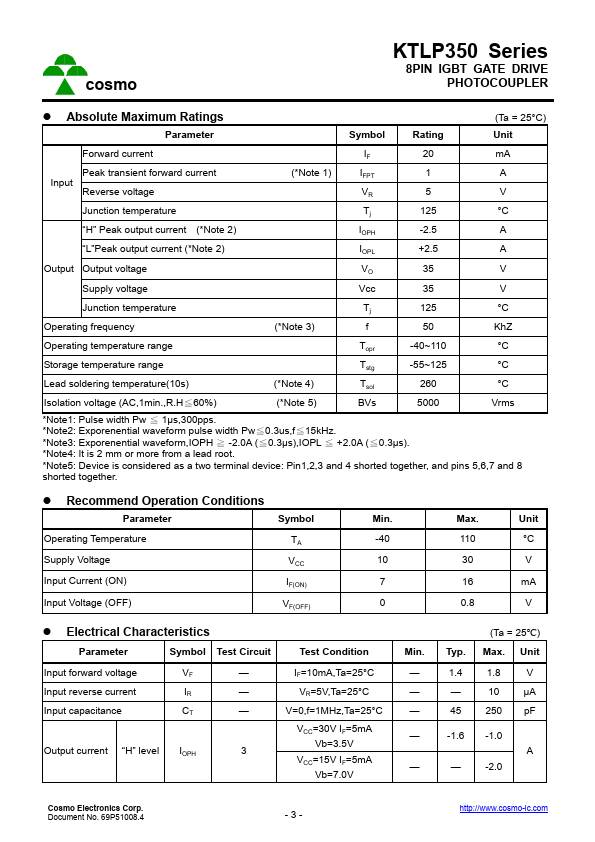

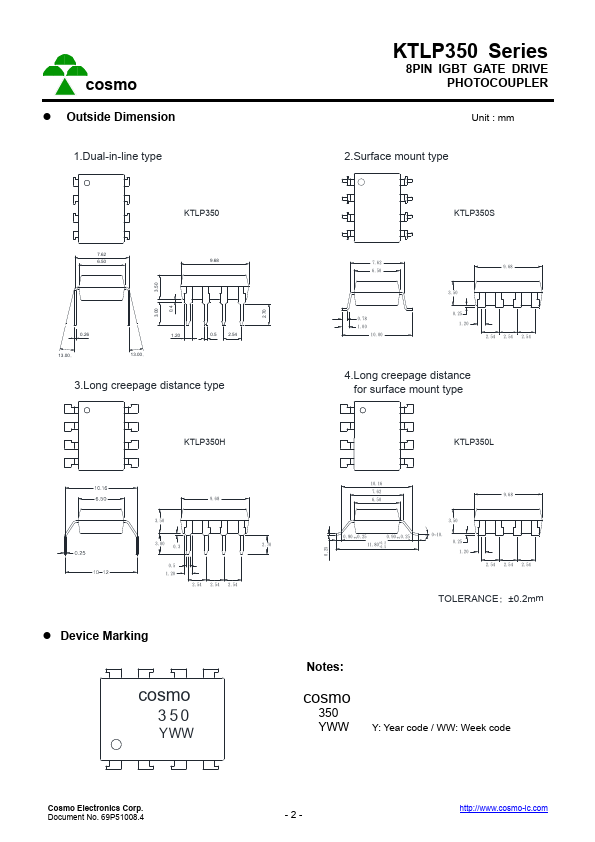

Additional preview pages of the KTLP350L datasheet.

📁 Similar Datasheet

  • KTLP3502 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3503 - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3506 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3507 - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3520 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3521 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3526 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3527 - Photo Coupler (COSMO Electronics Corporation)
  • KTLP3616 - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
  • KTLP3617 - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER (COSMO Electronics Corporation)
Other Datasheets by Cosmo
  • KTLP350 - 8PIN IGBT GATE DRIVE PHOTOCOUPLER
  • KTLP3502H - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KTLP3502L - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KTLP3502S - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER
  • KTLP3503H - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KTLP3503L - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KTLP3503S - 8PIN ZERO-CROSS TRIAC DRIVER PHOTOCOUPLER
  • KTLP3506H - 8PIN RANDOM-PHASE TRIAC DRIVER PHOTOCOUPLER

Full PDF Text Transcription

Click to expand full text
cosmo  Description The KTLP350 contain a GaAlAs light emitter diode optically coupled to an integrated circuit with a power output stage. . KTLP350 series photo coupler is ideally suited for driving IGBT and power MOSFET used in motor control inverter application and inverter power system.  Features 1. Input threshold current: IF=5mA(max.) 2. Supply current (Icc): 3 mA (max.) 3. Supply voltage (Vcc): 10 – 30V 4. Output current (IO): ±2.5A (max.) 5. Switching time (tpLH/tpHL): 0.5µs(max.) 6. Isolation voltage: 5000Vrms(min.) 7. Agency Approvals: • UL Approved (No. E169586): UL1577 • c-UL Approved (No. E169586) • VDE Approved (No.
