CVCO55CC-2120-2200 - Coaxial Resonator Oscillator

Crystek

Datasheet Details

Part number	CVCO55CC-2120-2200
Manufacturer	Crystek
File Size	431.92 KB
Description	Coaxial Resonator Oscillator
Datasheet	CVCO55CC-2120-2200 Datasheet
Additional preview pages of the CVCO55CC-2120-2200 datasheet.

📁 Similar Datasheet

CVCO55BE-1000-1500 - voltage controlled oscillator (CRYSTEK CORPORATION)

Other Datasheets by Crystek

CVCO55CC-0380-0440 - Coaxial Resonator Oscillator
CVCO55CC-0430-0480 - Coaxial Resonator Oscillator
CVCO55CC-3200-3200 - Coaxial Resonator Oscillator
CVCO55CC-3350-3500 - Coaxial Resonator Oscillator-CRO
CVCO55CC-4124-4238 - Coaxial Resonator Oscillator
CVCO55CL-0805-0900 - Voltage Controlled Oscillator
CVCO55CW-0140-0250 - Voltage Controlled Oscillator
CVCO55CW-0250-0450 - Voltage Controlled Oscillator

Full PDF Text Transcription

Click to expand full text

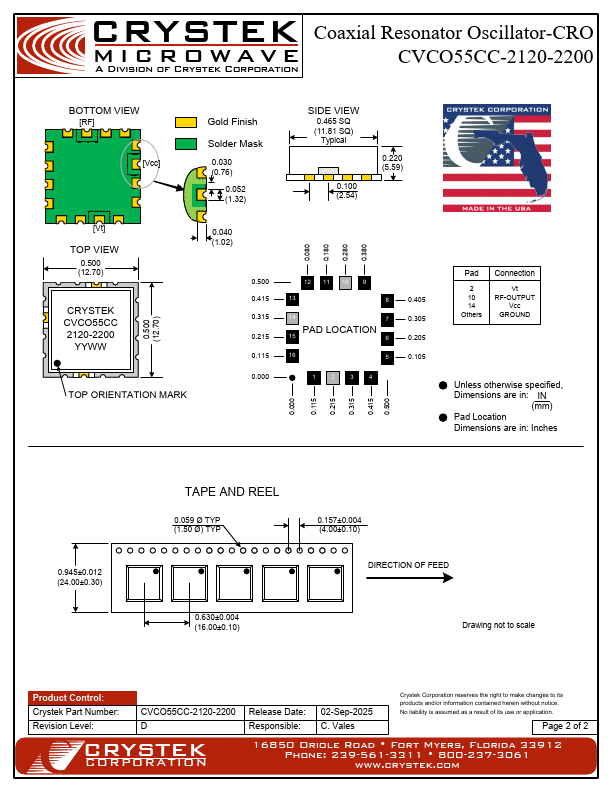

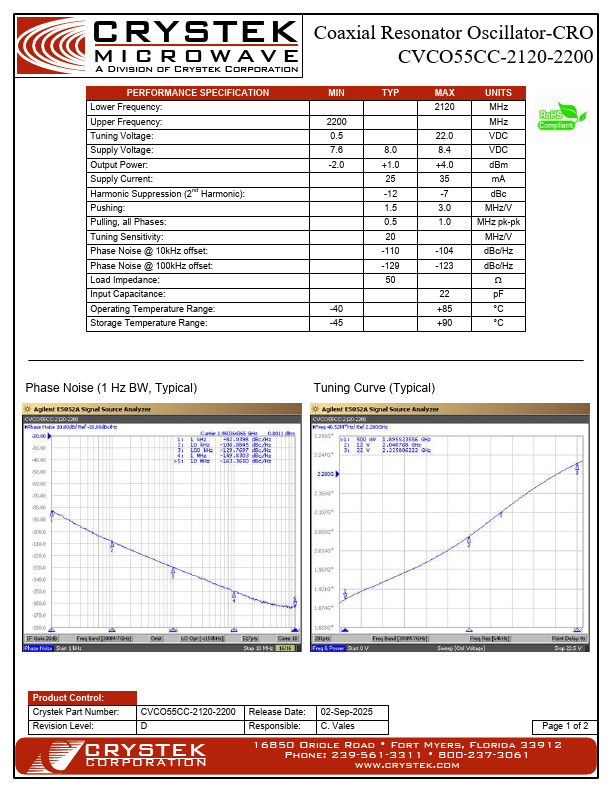

CRYSTEK Coaxial Resonator Oscillator-CRO MICROWAVE CVCO55CC-2120-2200 A Division of Crystek Corporation PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic): Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10kHz offset: Phase Noise @ 100kHz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range: MIN 2200 0.5 7.6 -2.0 -40 -45 TYP 8.0 +1.0 25 -12 1.5 0.5 20 -110 -129 50 MAX 2120 22.0 8.4 +4.0 35 -7 3.0 1.
