CVCO55CC-3200-3200
CVCO55CC-3200-3200 is Coaxial Resonator Oscillator manufactured by Crystek.
CRYSTEK Coaxial Resonator Oscillator-CRO
MICROWAVE
A Division of Crystek Corporation

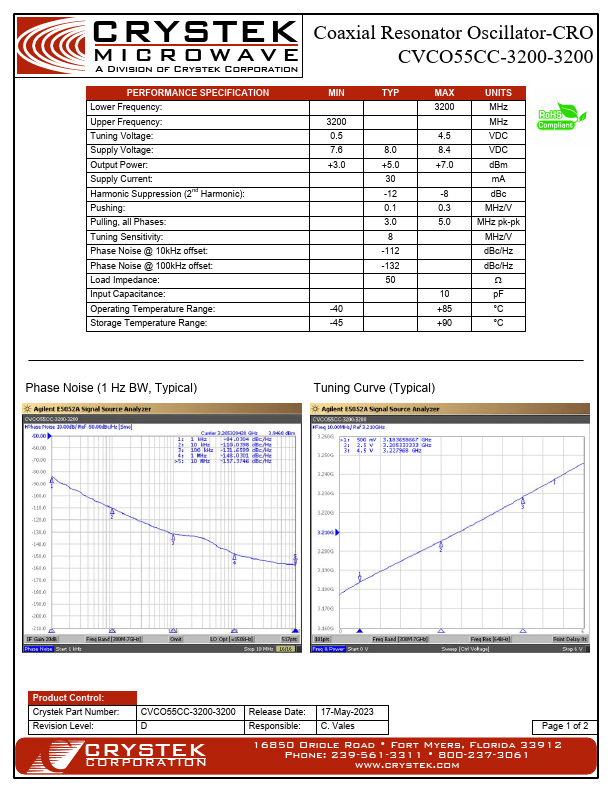

PERFORMANCE SPECIFICATION Lower Frequency: Upper Frequency: Tuning Voltage: Supply Voltage: Output Power: Supply Current: Harmonic Suppression (2nd Harmonic): Pushing: Pulling, all Phases: Tuning Sensitivity: Phase Noise @ 10k Hz offset: Phase Noise @ 100k Hz offset: Load Impedance: Input Capacitance: Operating Temperature Range: Storage Temperature Range:
MIN 3200 0.5 7.6 +3.0
-40 -45
8.0 +5.0 30 -12 0.1 3.0
8 -112 -132 50
MAX 3200
4.5 8.4 +7.0
-8 0.3 5.0
10 +85 +90
UNITS MHz MHz VDC VDC d Bm m A d Bc MHz/V MHz pk-pk MHz/V d Bc/Hz d Bc/Hz
p F °C °C
Phase Noise (1 Hz BW, Typical)
Tuning Curve (Typical)
Product Control:
Crystek Part Number: CVCO55CC-3200-3200
Revision Level:
C CRYSTEK CORPORATION
Release Date: Responsible:
17-May-2023 C. Vales
Page 1 of 2
