SSL36B
SSL36B is Schottky Barrier Rectifier manufactured by CumSumI.
- Part of the SSL34B comparator family.
- Part of the SSL34B comparator family.

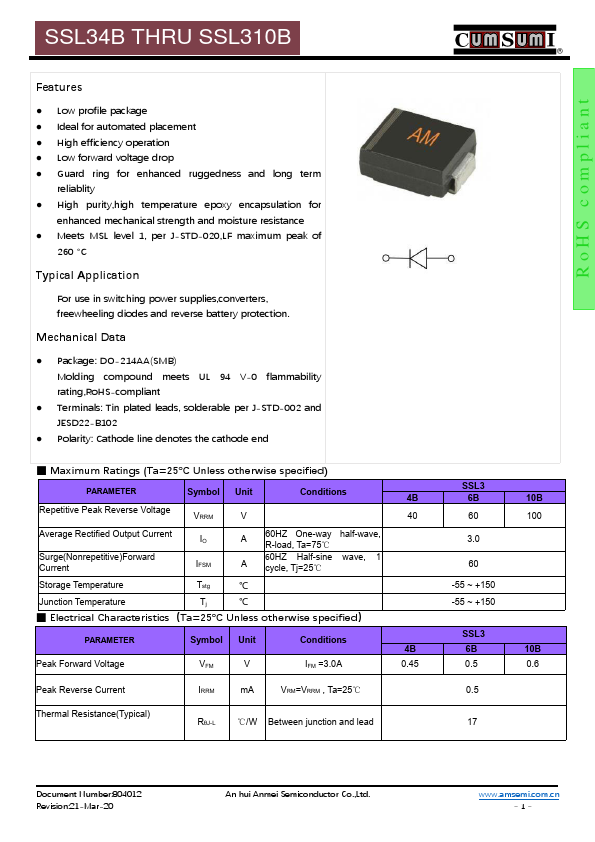

Features
- Low profile package
- Ideal for automated placement
- High efficiency operation
- Low forward voltage drop
- Guard ring for enhanced ruggedness and long term reliablity
- High purity,high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Meets MSL level 1, per J-STD-020,LF maximum peak of
260 °C
Typical Application
For use in switching power supplies,converters, freewheeling diodes and reverse battery protection.

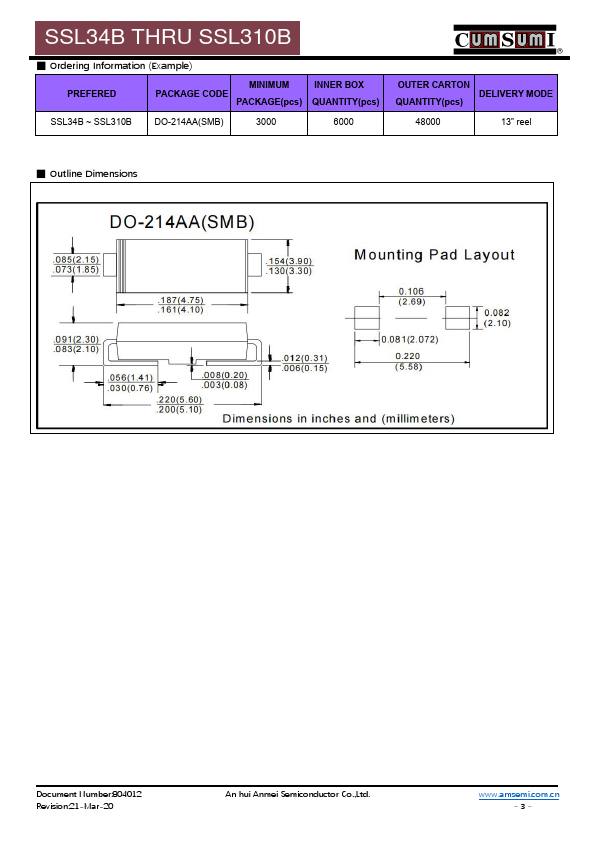

Mechanical Data
- Package: DO-214AA(SMB) Molding pound meets UL 94 V-0 flammability rating,Ro HS-pliant
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
Symbol Unit
Conditions
4B
Repetitive Peak Reverse Voltage
VRRM
Average Rectified Output Current
Surge(Nonrepetitive)Forward
Current
IFSM
60HZ One-way half-wave, R-load, Ta=75℃
60HZ Half-sine wave, 1 A cycle, Tj=25℃
Storage Temperature
Tstg
℃
Junction Temperature
Tj
℃

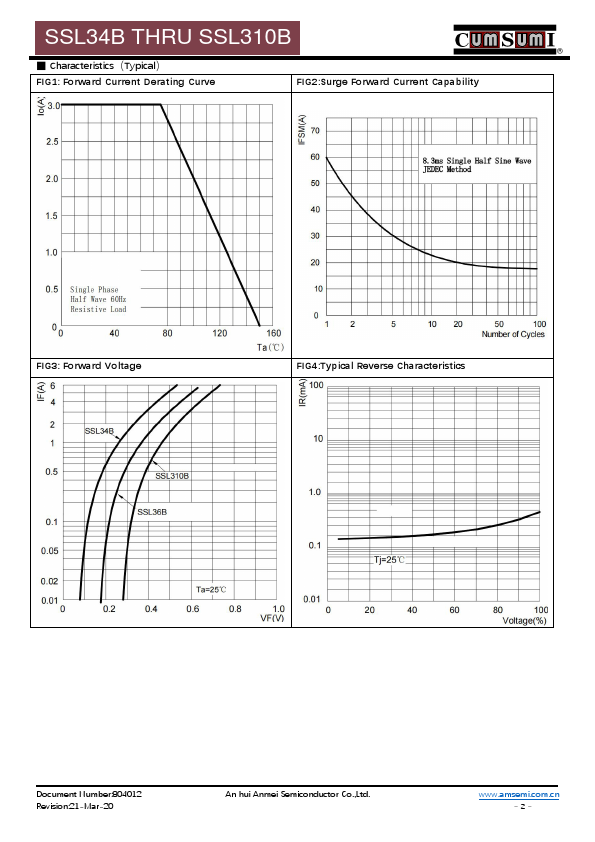

- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
PARAMETER Peak Forward Voltage
Symbol...
