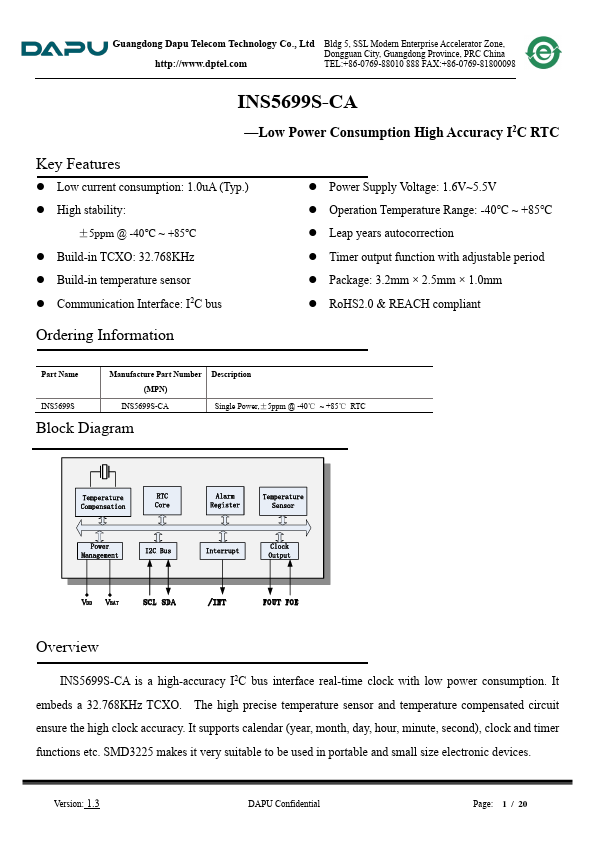

INS5699S-CA
INS5699S-CA is Low Power Consumption High Accuracy I2C RTC manufactured by DAPU.
Guangdong Dapu Tele Technology Co., Ltd Bldg 5, SSL Modern Enterprise Accelerator Zone,
Dongguan City, Guangdong Province, PRC China http://.dptel.
TEL:+86-0769-88010 888 FAX:+86-0769-81800098
- Low Power Consumption High Accuracy I2C RTC
Key Features
- Low current consumption: 1.0u A (Typ.)
- High stability:
±5ppm @ -40℃ ~ +85℃
- Build-in TCXO: 32.768KHz
- Build-in temperature sensor
- munication Interface: I2C bus
- Power Supply Voltage: 1.6V~5.5V
- Operation Temperature Range: -40℃ ~ +85℃
- Leap years autocorrection
- Timer output function with adjustable period
- Package: 3.2mm × 2.5mm × 1.0mm
- Ro HS2.0 & REACH pliant
Ordering Information
Part Name INS5699S
Manufacture Part Number Description
(MPN)
Single Power,±5ppm @ -40℃ ~ +85℃ RTC
Block Diagram
Temperature pensation
RTC Core
Alarm Register
Temperature Sensor
Power Management
I2C...
