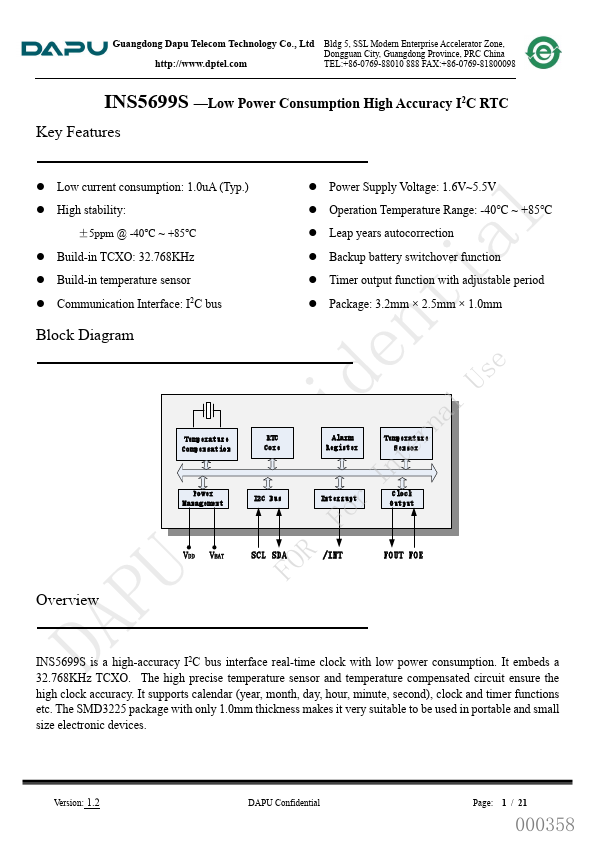

INS5699S
INS5699S is Low Power Consumption High Accuracy I2C RTC manufactured by DAPU.
Guangdong Dapu Tele Technology Co., Ltd Bldg 5, SSL Modern Enterprise Accelerator Zone,
Dongguan City, Guangdong Province, PRC China http://.dptel.
TEL:+86-0769-88010 888 FAX:+86-0769-81800098
- Low Power Consumption High Accuracy I2C RTC
Key Features
- Low current consumption: 1.0u A (Typ.)
- High stability:
±5ppm @ -40℃ ~ +85℃
- Build-in TCXO: 32.768KHz
- Build-in temperature sensor
- munication Interface: I2C bus
- Power Supply Voltage: 1.6V~5.5V
- Operation Temperature Range: -40℃ ~ +85℃
- Leap years autocorrection
- Backup battery switchover function
- Timer output function with adjustable period
- Package: 3.2mm × 2.5mm × 1.0mm
Block Diagram Overview
Temperature pensation
Power Management
VDD VBAT
RTC Core
I2C Bus
Use
Alarm Register nal Temperature Inter Sensor
For Interrupt
Clock Output
FOR SCL SDA
/INT
FOUT...
