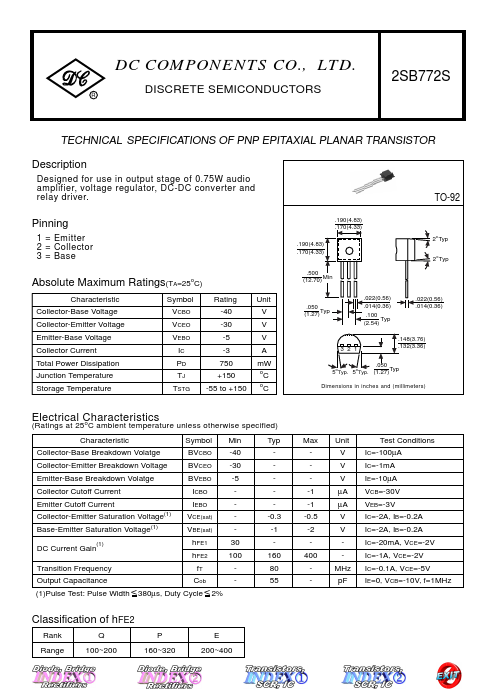

Description Designed for use in output stage of 0.75W audio amplifier, voltage regulator, DC-DC converter and relay driver. TO-92 Pinning 1 = Emitter 2 = Collector 3 = Base Absolute Maximum Ratings(TA=25o C) Characteristic Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Total Power Dissipation Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PD TJ TSTG Rating Unit -40 -30 -5 -3 750 m W +150 o C -55 to +150 o C .190(4.83) .170(4.33) .190(4.83) .170(4.33) .500 (12.70) Min 2o Typ 2o Typ .050 (1.27)Typ .022(0.56) .014(0.36) .100 (2.54) Typ .022(0.56) .014(0.36) .148(3.76) .132(3.36) .050 5o Typ. 5o Typ. (1.27)Typ Dimensions in inches and (millimeters) Electrical Characteristics (Ratings at 25o C ambient temperature unless otherwise specified) Characteristic Symbol Min Typ Collector-Base Breakdown Volatge BVCBO...
