2SB772S - PNP Transistors

Key Features

  • s.
  • PNP transistor High current output up to 3A.
  • Low Saturation Voltage.
  • Complement to 2SD882S 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current to Continuous Collector Dissipation Junction Temperature Storage Temperature Symbol Rating Unit VCBO -40 V VCEO -30 V VEBO -6 V IC -3 A Pc 0.5 W TJ 150 ℃ Tstg -55 to 150 ℃ 1.Base 2.Collec.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB772S MEDIUM POWER LOW-VOLTAGE TRANSISTOR Unisonic Technologies
2SB772S PNP EPITAXIAL PLANAR TRANSISTOR DC COMPONENTS
2SB772SQ PNP Transistor PJ
2SB772 MEDIUM POWER LOW-VOLTAGE TRANSISTOR Unisonic Technologies
2SB772 PNP SILICON POWER TRANSISTOR NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB772 PNP Silicon Power Transistor
2SB709A PNP Transistors
2SB709A-HF PNP Transistors
2SB710 PNP Transistors
2SB710A PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

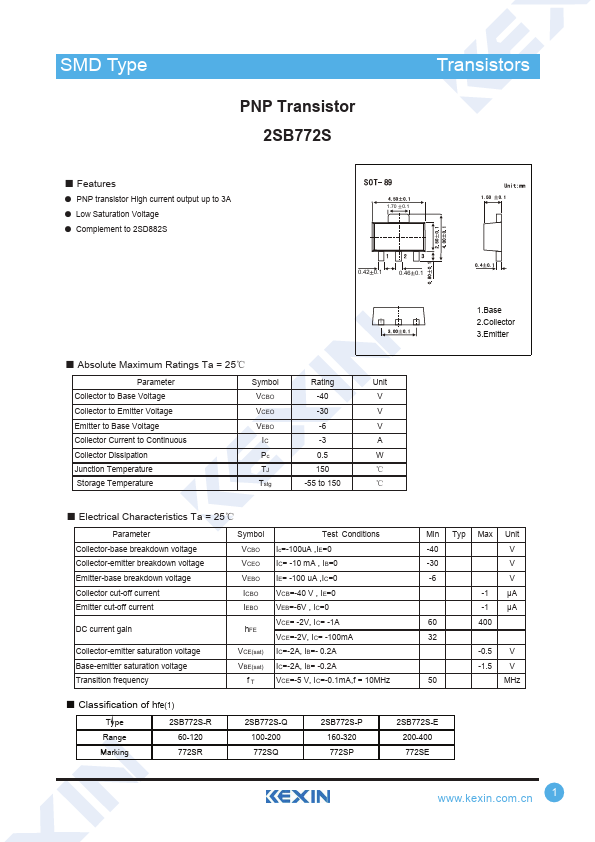

SMD Type PNP Transistor 2SB772S TTrraannssiissttoorrss ■ Features ● PNP transistor High current output up to 3A ● Low Saturation Voltage ● Complement to 2SD882S 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector to Base Voltage Collector to Emitter Voltage Emitter to Base Voltage Collector Current to Continuous Collector Dissipation Junction Temperature Storage Temperature Symbol Rating Unit VCBO -40 V VCEO -30 V VEBO -6 V IC -3 A Pc 0.5 W TJ 150 ℃ Tstg -55 to 150 ℃ 1.Base 2.Collector 3.
