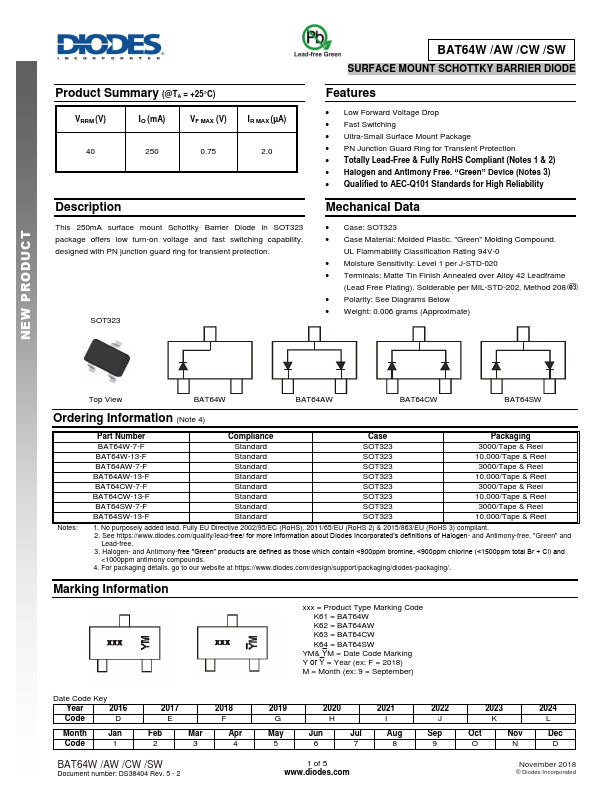

BAT64AW
BAT64AW is SURFACE MOUNT SCHOTTKY BARRIER DIODE manufactured by Diodes Incorporated.
- Part of the BAT64W comparator family.
- Part of the BAT64W comparator family.
Product Summary (@TA = +25°C)
VRRM (V)
IO (mA)
VF MAX (V)
IR MAX (µA)
Description
This 250mA surface mount Schottky Barrier Diode in SOT323 package offers low turn-on voltage and fast switching capability, designed with PN junction guard ring for transient protection.
SOT323
BAT64W /AW /CW /SW
SURFACE MOUNT SCHOTTKY BARRIER DIODE
Features
- Low Forward Voltage Drop
- Fast Switching
- Ultra-Small Surface Mount Package
- PN Junction Guard Ring for Transient Protection
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Notes 3)
- Qualified to AEC-Q101 Standards for High Reliability
Mechanical Data
- Case: SOT323
-...
