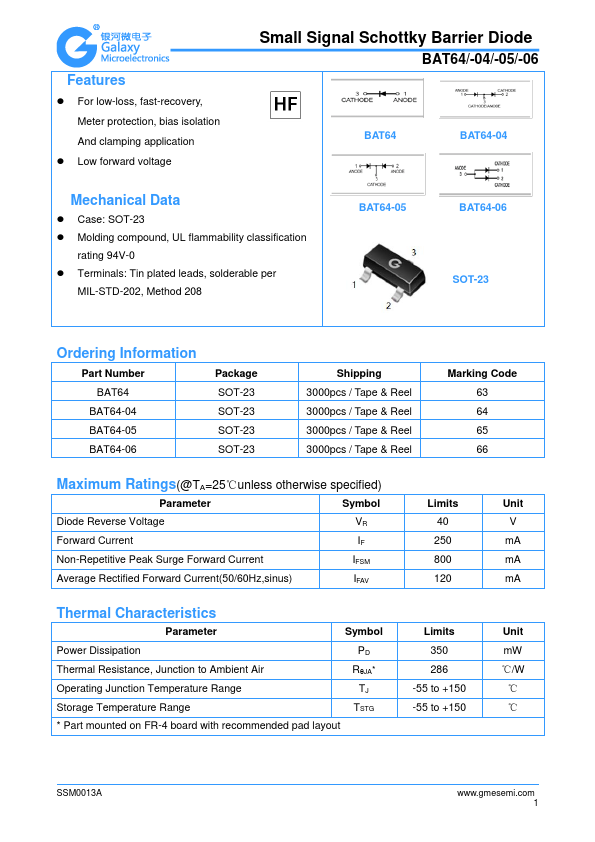

Galaxy Century Microelectronics BAT64
Small Signal Schottky Barrier Diode
| Part No. | BAT64 |
|---|---|
| Datasheet | BAT64 Download |
| Manufacturer | Galaxy Century Microelectronics |
| Description | Small Signal Schottky Barrier Diode |
| Buy | Stock & Price |
FEATURES
● For low-loss, fast-recovery, Meter protection, bias isolation And clamping application● Low forward voltage Small Signal Schottky Barrier Diode BAT64/-04/-05/-06 BAT64 BAT64-04
MECHANICAL DATA
● Case: SOT-23● Molding compound, UL flammability classification rating 94V-0
● Terminals: Tin plated leads, solderable per MIL-STD-202, Method 208 BAT64-05 BAT64-06 SOT-23 Ordering Information Part Number BAT64 BAT64-04 BAT64-05 BAT64-06 Package SOT-23 SOT-23 SOT-23 SOT-23 Shipping 3000pcs / Tape & Reel 3000pcs / Tape & Reel 3000pcs / Tape & Reel 3000pcs / Tape & Reel Marking Code 63 64 65 66
MAXIMUM RATINGS
(@TA=25℃unless otherwise specified) Parameter Symbol Diode Reverse Voltage VR Forward Current IF Non-Repetitive Peak Surge Forward Current IFSM Average Rectified Forward Current(50/60Hz,sinus) IFAV Thermal Characteristics Parameter Symbol Power Dissipation PD Thermal Resistance, Junction to Ambient Air RθJA* Operating Junction Temperature Range TJ Storage Temperature Range TSTG *...
