BAT64

Manufacturer: Yangjie Electronic

BAT64 datasheet by Yangjie Electronic.

BAT64 datasheet preview

BAT64 Datasheet Details

Part number	BAT64
Datasheet	BAT64-YangzhouYangjie.pdf
File Size	277.64 KB
Manufacturer	Yangjie Electronic
Description	Schottky Barrier Diode

BAT64 Overview

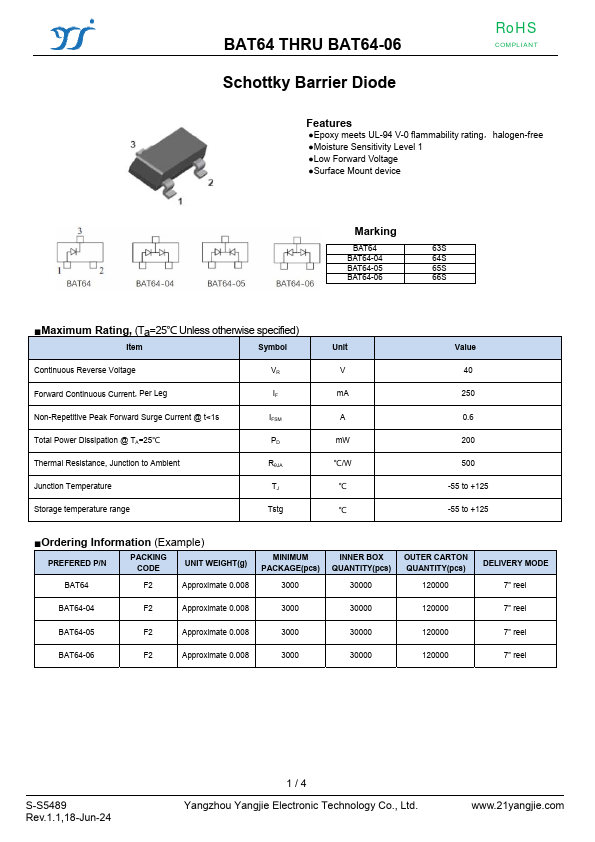

BAT64 THRU BAT64-06 Schottky Barrier Diode RoHS PLIANT.

BAT64 Key Features

Epoxy meets UL-94 V-0 flammability rating，halogen-free -Moisture Sensitivity Level 1 -Low Forward Voltage -Surface Mount
Maximum Rating, (Ta=25℃ Unless otherwise specified)
55 to +125 -55 to +125
Ordering Information (Example)

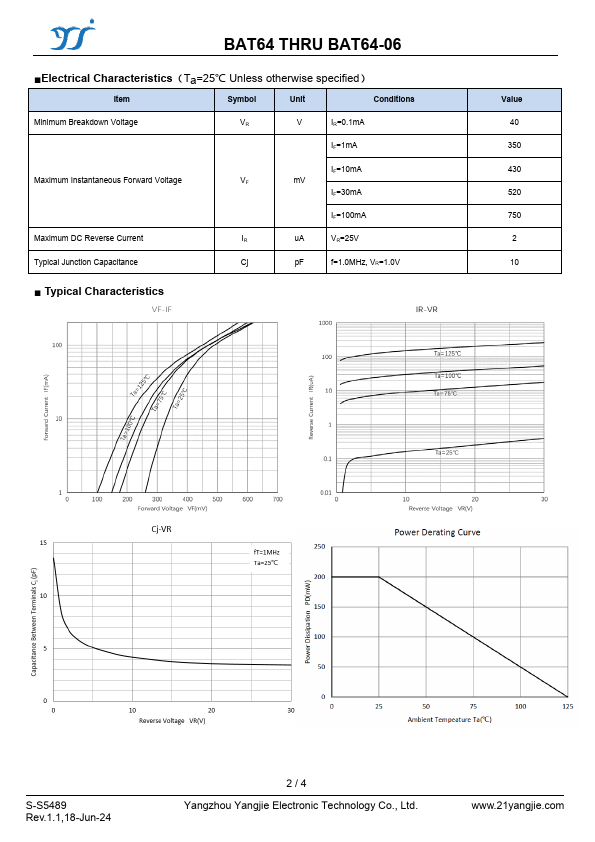

Electrical Characteristics（Ta=25℃ Unless otherwise specified）
Typical Characteristics
SOT-23 Package Outline Dimensions
SOT-23 Soldering Footprint
