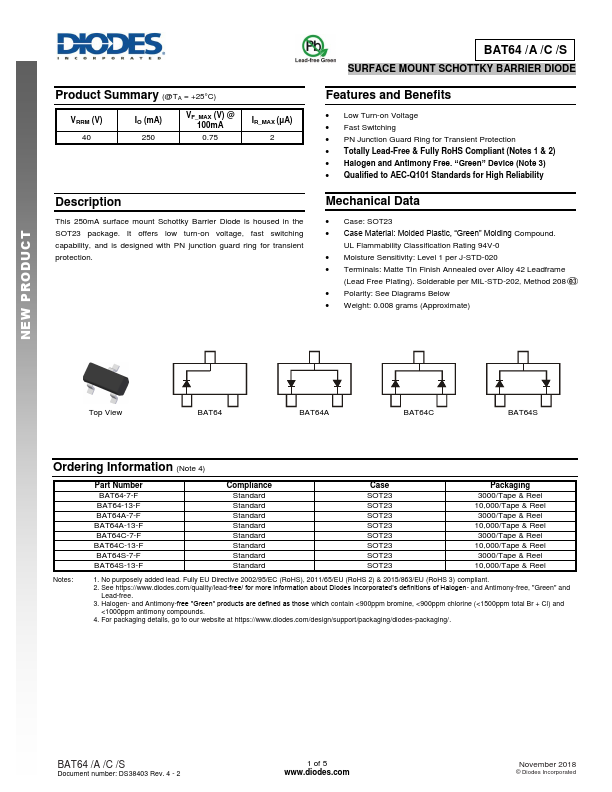

BAT64C Overview
This 250mA surface mount Schottky Barrier Diode is housed in the SOT23 package. It offers low turn-on voltage, fast switching capability, and is designed with PN junction guard ring for transient protection. BAT64 /A /C /S SURFACE MOUNT SCHOTTKY BARRIER DIODE.
BAT64C Key Features
- Low Turn-on Voltage
- Fast Switching
- PN Junction Guard Ring for Transient Protection
- Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- Qualified to AEC-Q101 Standards for High Reliability
- Case: SOT23
- Case Material: Molded Plastic, “Green” Molding pound
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
