DMN2025U - N-CHANNEL MOSFET

Description

This MOSFET is designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, which makes it ideal for high-efficiency power-management applications.

Backlighting Power-management functions DC-DC converters

Features

  • Low On-Resistance.
  • Low Input Capacitance.
  • Fast Switching Speed.
  • ESD Protected Gate.
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • For automotive.

📥 Download Datasheet

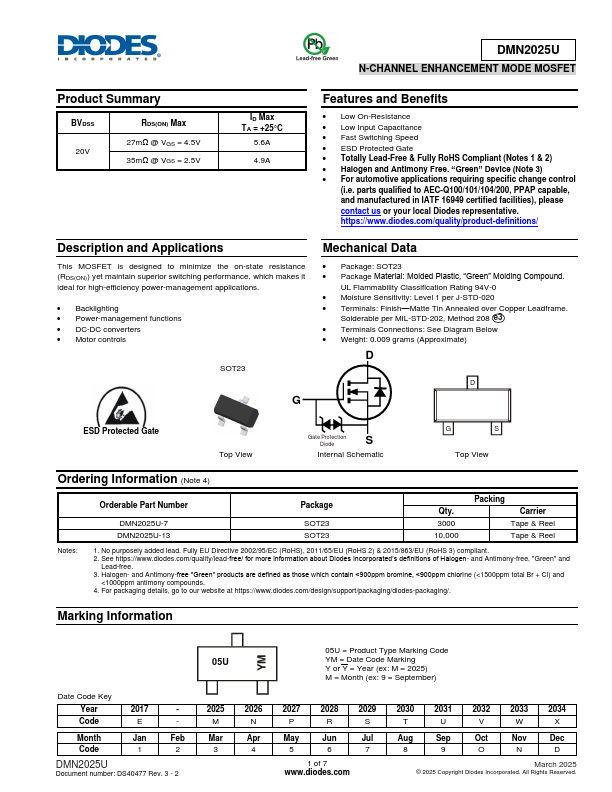

Datasheet preview – DMN2025U

Datasheet Details

Part number DMN2025U
Manufacturer Diodes Incorporated
File Size 320.94 KB
Description N-CHANNEL MOSFET
Datasheet download datasheet DMN2025U Datasheet

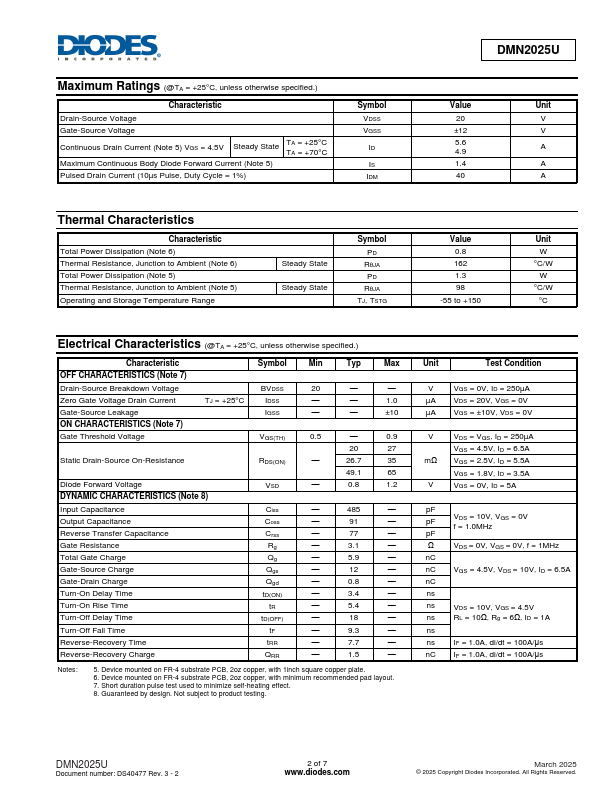

Additional preview pages of the DMN2025U datasheet.

📁 Similar Datasheet

  • DMN2004DWK - DUAL N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN2004K - N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN2004VK - DUAL N-CHANNEL ENHANCEMENT MODE MOSFET (Diodes Incorporated)
  • DMN2004WK - N-Channel MOSFET (Diodes Incorporated)
  • DMN2005K - N-Channel Transistor (Diodes Incorporated)
  • DMN2005LP4K - N-Channel Transistor (Diodes Incorporated)
  • DMN2005LPK - N-Channel Transistor (Diodes Incorporated)
  • DMN2112SN - N-Channel FET (Diodes Incorporated)
  • DMN2114SN - N-Channel Transistor (Diodes Incorporated)
  • DMN21D2UFB - 20V N-CHANNEL MOSFET (Diodes Incorporated)
Other Datasheets by DIODES

Full PDF Text Transcription

Click to expand full text
DMN2025U N-CHANNEL ENHANCEMENT MODE MOSFET Product Summary BVDSS 20V RDS(ON) Max 27mΩ @ VGS = 4.5V 35mΩ @ VGS = 2.5V ID Max TA = +25°C 5.6A 4.9A Features and Benefits • Low On-Resistance • Low Input Capacitance • Fast Switching Speed • ESD Protected Gate • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.
