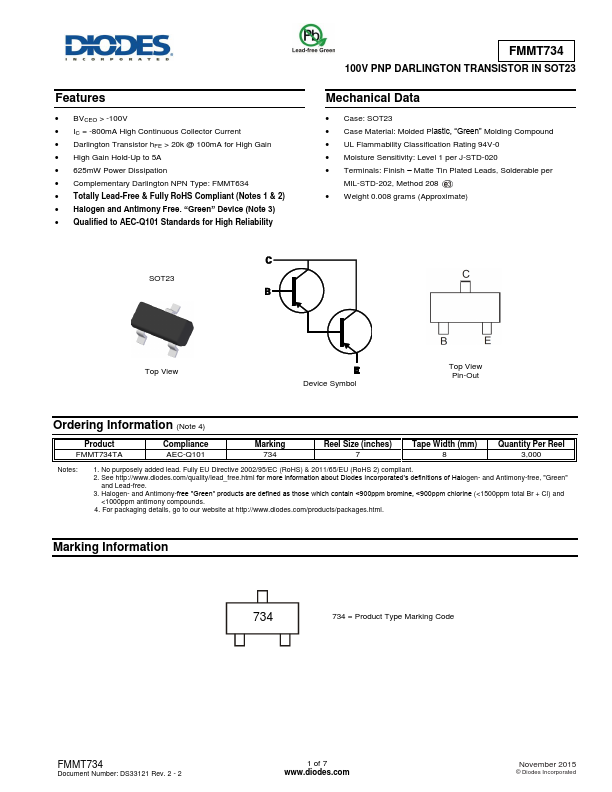

FMMT734
FMMT734 is 100V PNP DARLINGTON TRANSISTOR manufactured by Diodes Incorporated.
Features
- BVCEO > -100V
- IC = -800m A High Continuous Collector Current
- Darlington Transistor h FE > 20k @ 100m A for High Gain
- High Gain Hold-Up to 5A
- 625m W Power Dissipation
- plementary Darlington NPN Type: FMMT634
- Totally Lead-Free & Fully Ro HS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- Qualified to AEC-Q101 Standards for High Reliability
100V PNP DARLINGTON TRANSISTOR IN SOT23
Mechanical Data
- Case: SOT23
- Case Material: Molded Plastic, “Green” Molding pound
- UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 1 per J-STD-020
- Terminals: Finish
- Matte Tin Plated Leads, Solderable per
MIL-STD-202, Method 208
- Weight 0.008 grams (Approximate)
SOT23
Top View
Device Symbol
Top View Pin-Out
Ordering Information (Note 4)
Product FMMT734TA pliance AEC-Q101
Marking 734
Reel Size (inches) 7
Tape Width (mm) 8
Quantity Per Reel 3,000
Notes:
1. No purposely added lead. Fully EU Directive 2002/95/EC (Ro HS) & 2011/65/EU (Ro HS 2) pliant. 2. See http://.diodes./quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony pounds. 4. For packaging details, go to our website at http://.diodes./products/packages.html.
Marking Information
7ZF3E4
734 = Product Type Marking Code
Document Number: DS33121 Rev. 2
- 2
1 of 7 .diodes.
