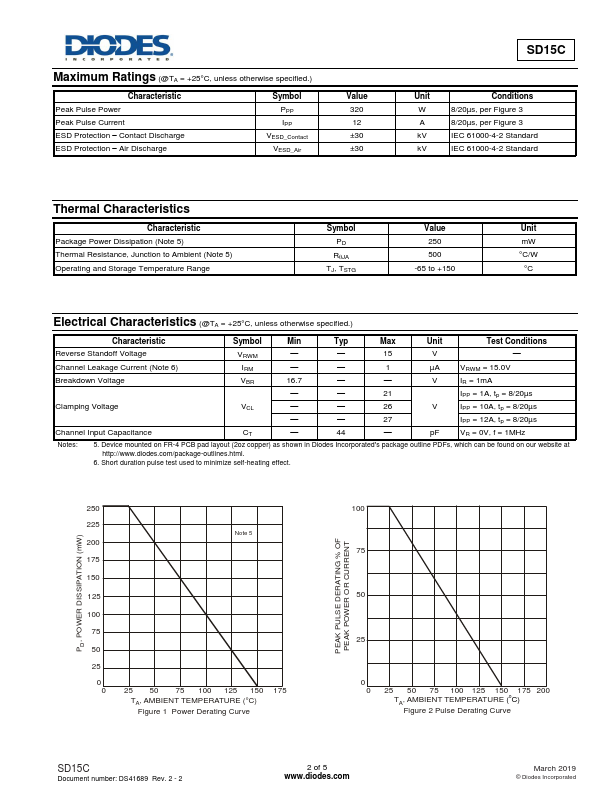

SD15C page 2
Page 2
SD15C page 3
Page 3

SD15C Key Features

  • Provides ESD Protection per IEC 61000-4-2 Standard: Air ±30kV, Contact ±30kV
  • Bidirectional Configuration
  • Ultra Low Channel Input Capacitance
  • Totally Lead-Free & Fully RoHS pliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • Case: SOD323
  • Case Material: Molded Plastic, “Green” Molding pound. UL
  • Moisture Sensitivity: Level 1 per J-STD-020
  • Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe
  • Weight: 0.004 grams (Approximate)

Other SD15C Datasheets

Manufacturer Part Number Description
Windforce
Windforce		 SD15C Low capacitance bidirectional TVS Diodes
GRANDE
GRANDE		 SD15C 15~24Volts ESD Protection
Leiditech Logo Leiditech SD15C BIDIRECTIONAL TVS DIODE
Semtech Corporation Logo SEMTECH SD15C Single Line TVS Diode for ESD Protection in Portable Electronics
Kexin Logo Kexin Semiconductor SD15C TVS Diodes

View all SD15C datasheets →

SD15C Description

This new generation TVS is designed to protect sensitive electronics from the damage due to ESD. The bination of small size and high ESD surge capability makes it ideal for use in portable applications such as cellular phones, digital cameras, and MP3 players. Applications  Cellular Handsets  Portable Electronics  puters and Peripheral.
