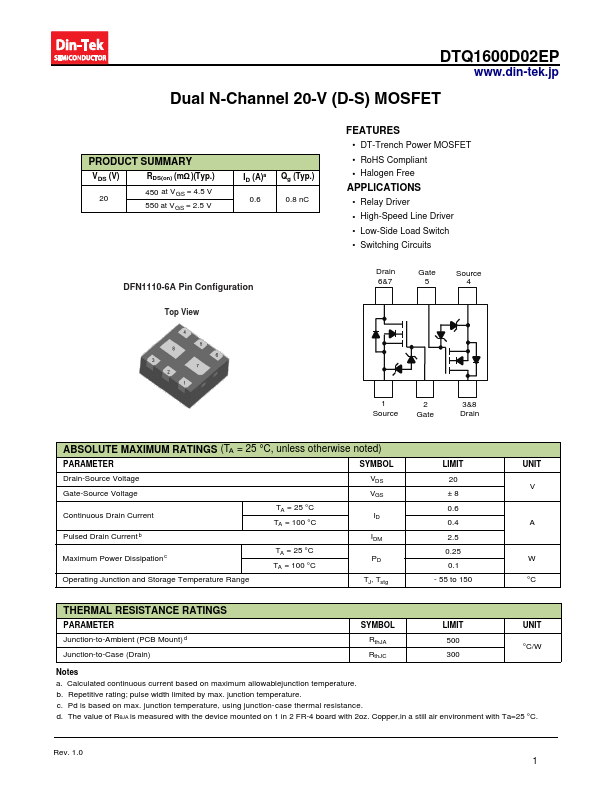

DTQ1600D02EP
www.din-tek.jp
Dual N-Channel 20-V (D-S) MOSFET
PRODUCT SUMMARY
VDS (V)
RDS(on) (mΩ )(Typ.)
20
450 at VGS = 4.5 V
550 at VGS = 2.5 V
ID (A)a Qg (Typ.)
0.6
0.8 nC
DFN1110-6A Pin Configuration
Top View
FEATURES • DT-Trench Power MOSFET
• RoHS Compliant • Halogen Free APPLICATIONS Relay Driver High-Speed Line Driver Low-Side Load Switch Switching Circuits
Drain 6&7
Gate 5
Source 4
1 Source
2 Gate
3&8 Drain
ABSOLUTE MAXIMUM RATINGS (TA = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current b Maximum Power Dissipationc Operating Junction and Storage Temperature Range
TA = 25 °C TA = 100 °C
TA = 25 °C TA = 100 °C
VDS VGS ID IDM PD TJ, Tstg
LIMIT 20 ±8 0.6 0.4 2.5 0.25 0.
