Datasheet Details
| Part number | DTQ2421 |
|---|---|
| Manufacturer | Din-Tek |
| File Size | 3.48 MB |
| Description | 40V P-Channel Power MOSFET |
| Datasheet |

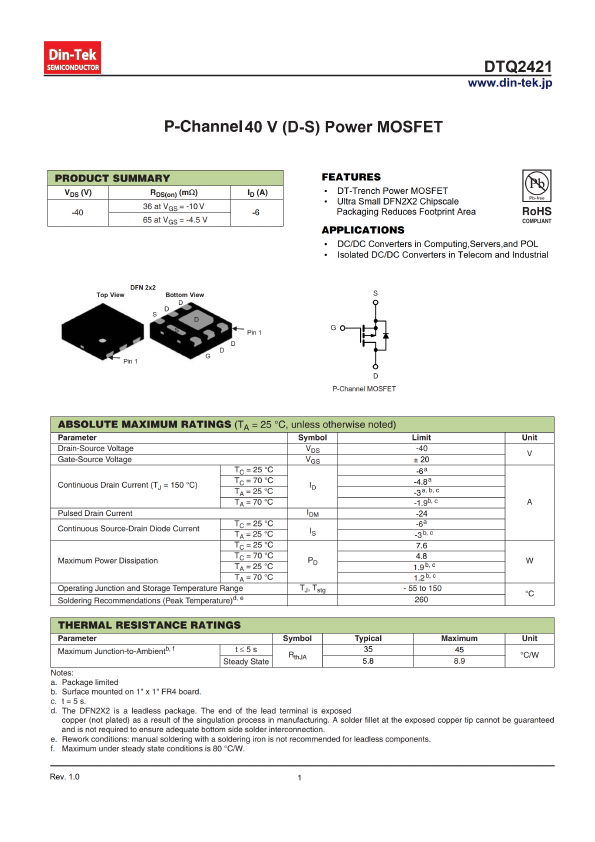

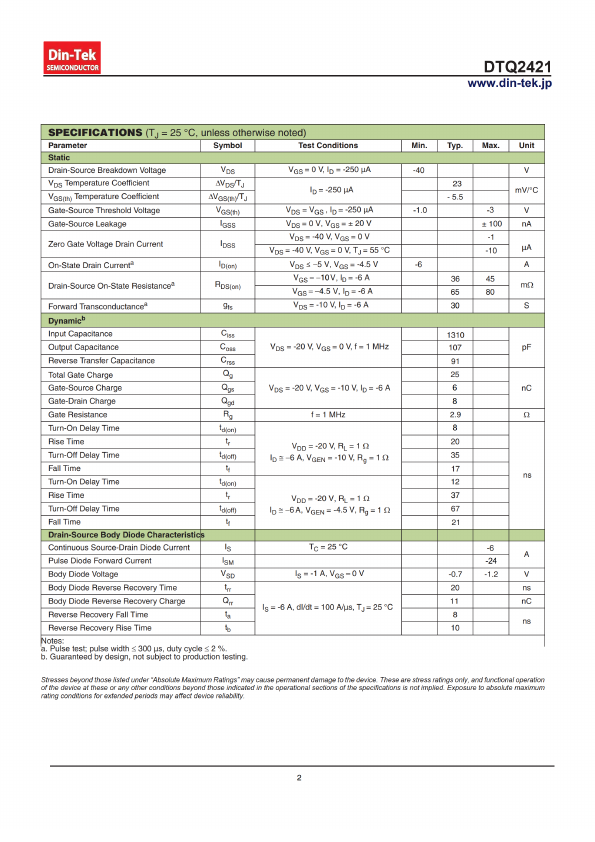

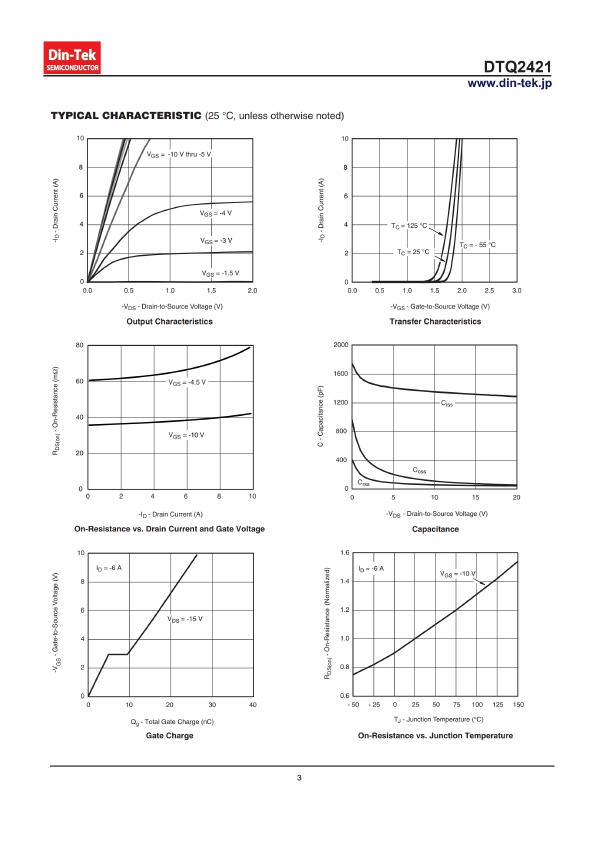

 DTQ2421 Datasheet
|
|
|
| Part number | DTQ2421 |
|---|---|
| Manufacturer | Din-Tek |
| File Size | 3.48 MB |
| Description | 40V P-Channel Power MOSFET |
| Datasheet |
DTQ2421 Datasheet
|
|
|
|
| Part Number | Description | Manufacturer |
|---|---|---|
| DTQ20P2 | (DTQ-xxx) Service Manual | Daewoo |
| DTQ20V1 | (DTQ-xxx) Service Manual | Daewoo |
| DTQ-13V6FCB | Color TV | Daewoo |
| DTQ-13V6FCP | Color TV | Daewoo |
| DTQ-14D7SS | Service Manual | DAEWOO |
| Part Number | Description |
|---|---|
| DTQ2115 | 15V P-Channel MOSFET |
| DTQ218P015 | 15V P-Channel MOSFET |
| DTQ2200 | 30V N-Channel MOSFET |
| DTQ2208 | 20V N-Channel MOSFET |
| DTQ2210 | 20V N-Channel MOSFET |
The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.
