DTQ3409 - P-Channel MOSFET

This page provides the datasheet information for the DTQ3409, a member of the DTQ3409-Din P-Channel MOSFET family.

Features

DT-Trench Power MOSFET.
100 % Rg and UIS Tested.

Din-Tek

📥 Download Datasheet

Datasheet Details

Part number	DTQ3409
Manufacturer	Din-Tek
File Size	442.89 KB
Description	P-Channel MOSFET
Datasheet	DTQ3409 Datasheet

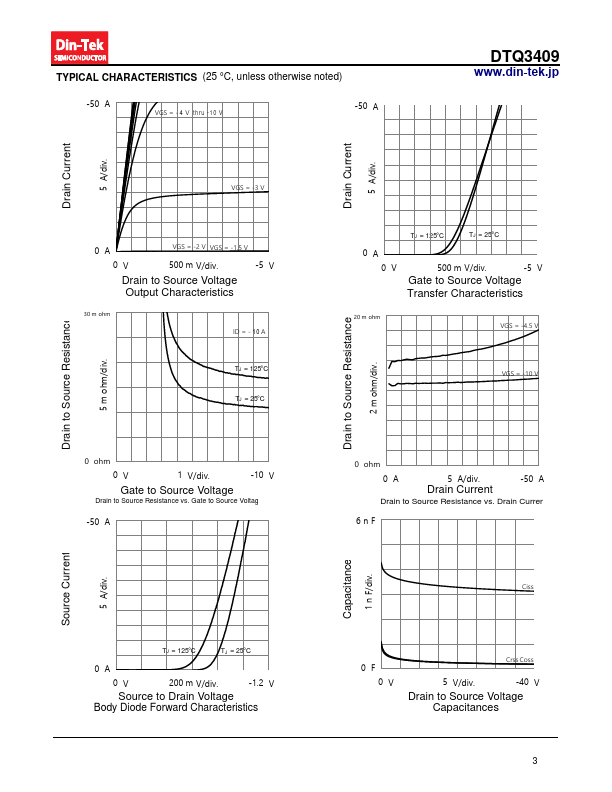

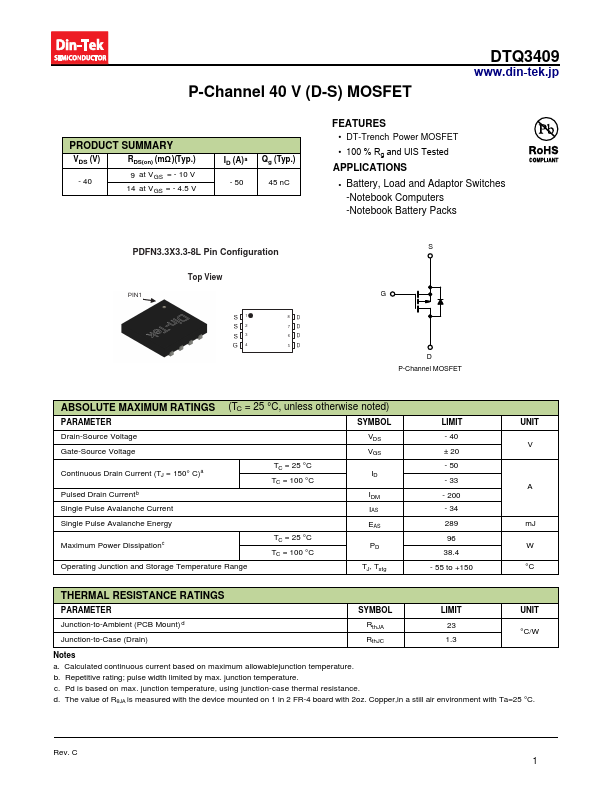

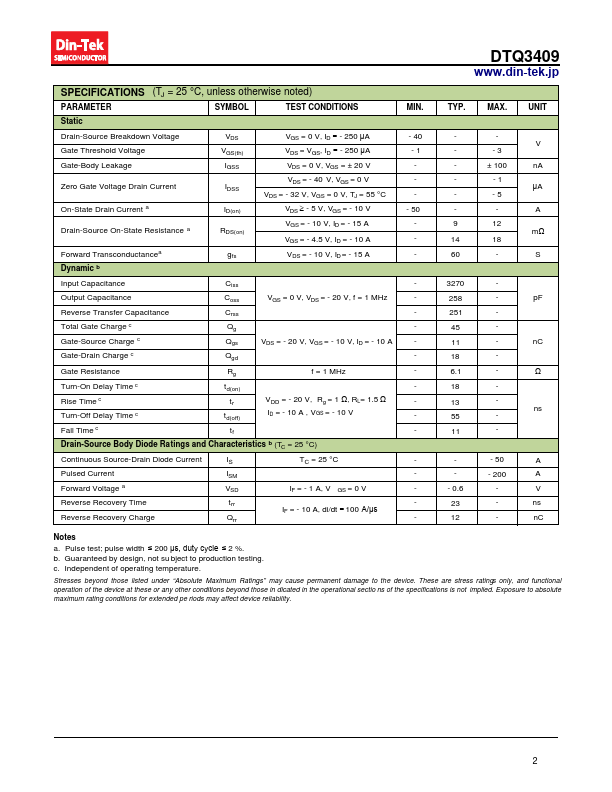

Additional preview pages of the DTQ3409 datasheet.

📁 Similar Datasheet

DTQ-13V6FCB - Color TV (Daewoo)
DTQ-13V6FCP - Color TV (Daewoo)
DTQ-14D7SS - Service Manual (DAEWOO)
DTQ-14D7SSP - Service Manual (DAEWOO)
DTQ-14J - (DTQ-xxx) Service Manual (Daewoo)
DTQ-14P2 - (DTQ-xxx) Service Manual (Daewoo)
DTQ-14U - (DTQ-xxx) Service Manual (Daewoo)
DTQ-14U1FS - Service Manual (Daewoo)
DTQ-14U1FSN - Color Television Service Manual (DAEWOO ELECTRONICS)
DTQ-14U1FSP - Service Manual (Daewoo)

Other Datasheets by Din-Tek

DTQ3115 - P-Channel MOSFET
DTQ3200 - N-Channel MOSFET
DTQ3202 - N-Channel MOSFET
DTQ3204 - N-Channel MOSFET
DTQ3205 - P-Channel MOSFET
DTQ3205A - P-Channel MOSFET
DTQ3215 - P-Channel MOSFET
DTQ3221 - P-Channel MOSFET

Full PDF Text Transcription

Click to expand full text

P-Channel 40 V (D-S) MOSFET DTQ3409 www.din-tek.jp PRODUCT SUMMARY VDS (V) RDS(on) () Typ. 0.009 at VGS = - 10 V - 40 0.014 at VGS = - 4.5 V ID (A) - 50d - 40d Qg (Typ.) 45 nC PDFN 3.3x3.
