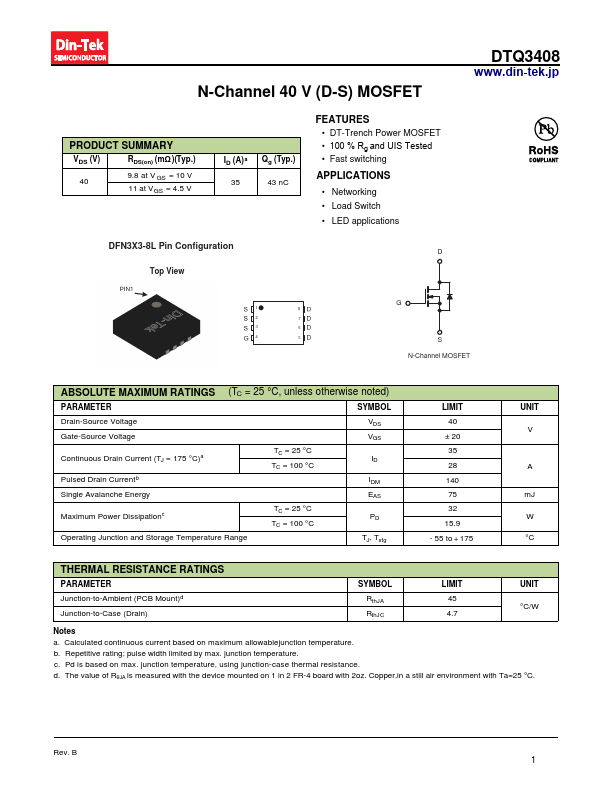

DTQ3408
DTQ3408 is 40V N-Channel MOSFET manufactured by Din-Tek Semiconductor.
FEATURES
- DT-Trench Power MOSFET
- 15J DQG8,67HVWHG
- Fast switching
APPLICATIONS
- Networking
- Load Switch
- LED applications
DFN3X3-8L Pin Configuration
Top View
PIN1
N-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage Gate-Source Voltage Continuous Drain Current (TJ = 175 °C)a Pulsed Drain Currentb Single Avalanche Energy Maximum Power Dissipationc Operating Junction and Storage Temperature Range
TC = 25 °C TC = 100 °C
TC = 25 °C TC = 100 °C
VDS VGS ID IDM EAS PD TJ, Tstg
LIMIT 40 ± 20 35 28 140 75 32 15.9
- 55 to + 175
UNIT V
A m J W °C
THERMAL RESISTANCE RATINGS
PARAMETER Junction-to-Ambient (PCB Mount)d Junction-to-Case (Drain)
SYMBOL Rth JA Rth JC
LIMIT 45 4.7
UNIT °C/W
Notes a. Calculated continuous current based on maximum allowablejunction temperature. b. Repetitive rating; pulse width limited by max. junction temperature. c. Pd is based on max. junction temperature, using junction-case thermal resistance. d. The value of RθJA is measured with the device mounted on 1 in 2 FR-4 board with 2oz. Copper,in a still air environment with Ta=25 °C.
Rev. B
.din-tek.jp

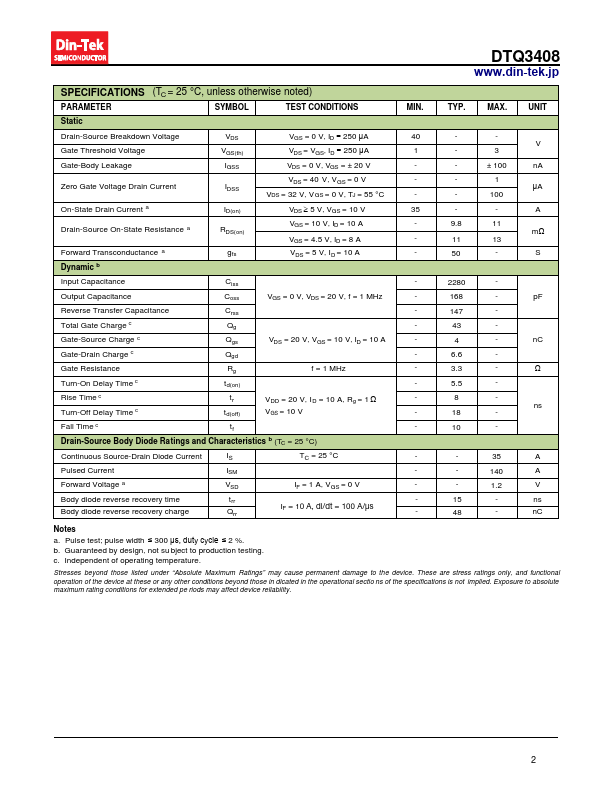

SPECIFICATIONS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN.
TYP.
MAX.

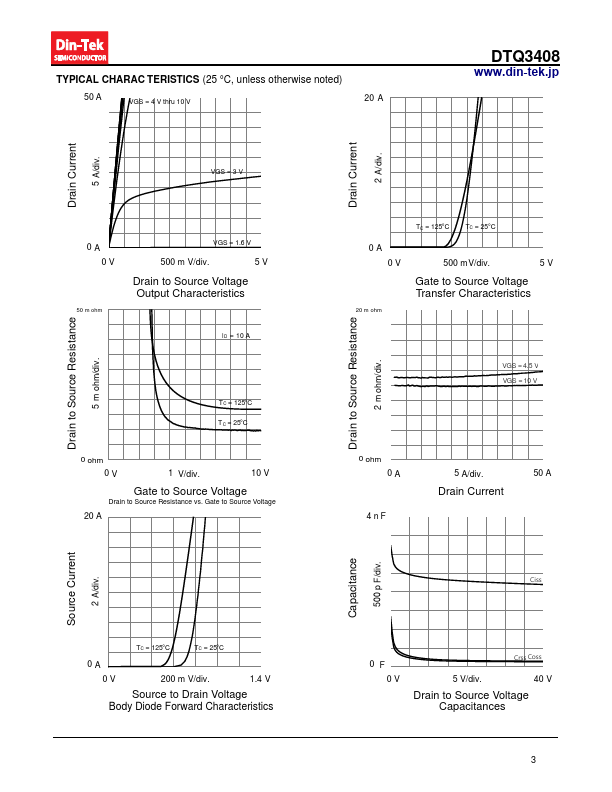

UNIT...
