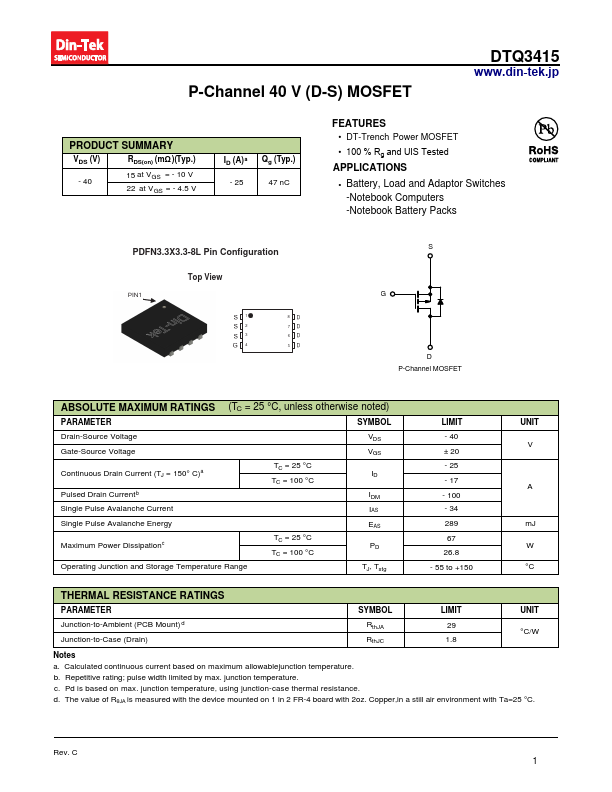

DTQ3415
DTQ3415 is 40V P-Channel MOSFET manufactured by Din-Tek Semiconductor.
FEATURES
- DT-Trench Power MOSFET
- 15J DQG8,67HVWHG
APPLICATIONS Battery, Load and Adaptor Switches -Notebook puters -Notebook Battery Packs
PDFN3.3X3.3-8L Pin Configuration
PIN1
Top View
D P-Channel MOSFET
ABSOLUTE MAXIMUM RATINGS (TC = 25 °C, unless otherwise noted)
PARAMETER
SYMBOL
Drain-Source Voltage
Gate-Source Voltage
Continuous Drain Current (TJ = 150° C)a
Pulsed Drain Currentb Single Pulse Avalanche Current
TC = 25 °C ID
TC = 100 °C IDM IAS
Single Pulse Avalanche Energy Maximum Power Dissipationc
EAS TC = 25 °C
PD TC = 100 °C
Operating Junction and Storage Temperature Range
TJ, Tstg
LIMIT
- 40 ± 20
- 25
- 17
- 100
- 34 289 67 26.8
- 55 to +150
UNIT V
A m J W °C
THERMAL RESISTANCE RATINGS
PARAMETER
SYMBOL
LIMIT
UNIT
Junction-to-Ambient (PCB Mount) d Junction-to-Case...
