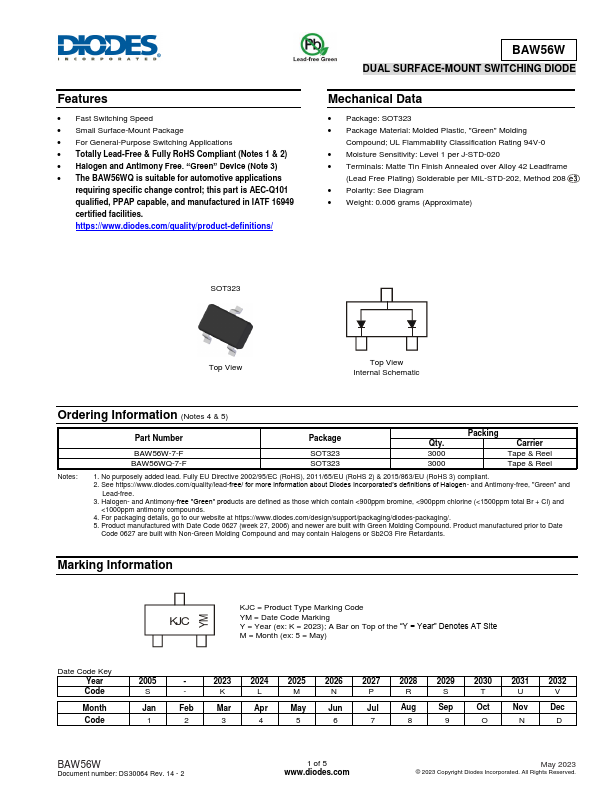

BAW56W
DUAL SURFACE MOUNT SWITCHING DIODE Features
· · · · Fast Switching Speed Ultra-Small Surface Mount Package For General Purpose Switching Applications High Conductance
SOT-323
A
Dim A B
B C
Min 0.30 1.15 2.00 0.30 1.20 1.80 0.0 0.90 0.25 0.10
Max 0.40 1.35 2.20 0.40 1.40 2.20 0.10 1.00 0.40 0.25
C D E G H J K
L
Mechanical Data
· · · · · · Case: SOT-323, Molded Plastic Case Material - UL Flammability Rating Classification 94V-0 Terminals: Solderable per MIL-STD-202, Method 208 Polarity: See Diagram Marking: KJC Weight: 0.006 grams (approx.)
E
0.
