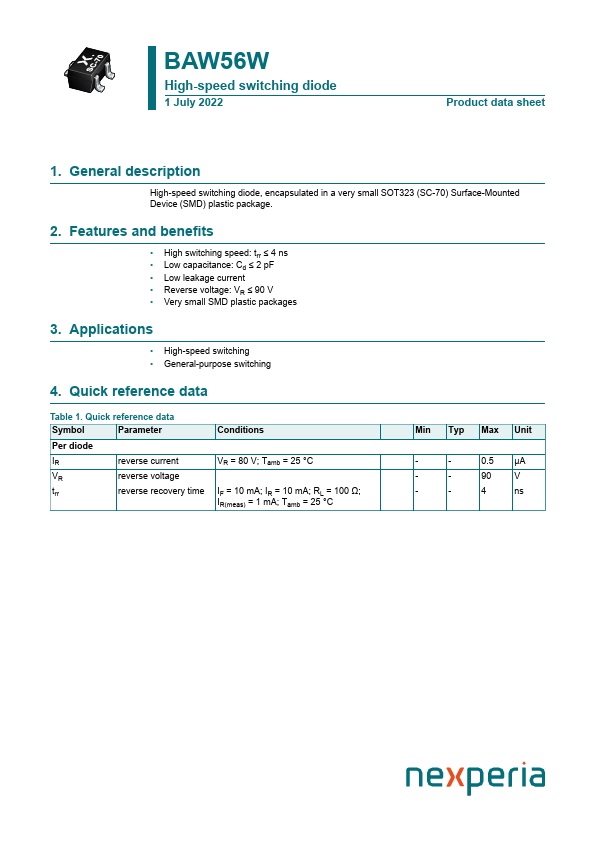

Datasheet Summary
High-speed switching diode
1 July 2022
Product data sheet
1. General description
High-speed switching diode, encapsulated in a very small SOT323 (SC-70) Surface-Mounted Device (SMD) plastic package.
2. Features and benefits
- High switching speed: trr ≤ 4 ns
- Low capacitance: Cd ≤ 2 pF
- Low leakage current
- Reverse voltage: VR ≤ 90 V
- Very small SMD plastic packages
3. Applications
- High-speed switching
- General-purpose switching
4. Quick reference data
Table 1. Quick reference data
Symbol
Parameter
Per diode
IR reverse current
VR reverse voltage trr reverse recovery time
Conditions
VR = 80 V; Tamb = 25 °C
IF = 10 mA; IR = 10 mA; RL = 100 Ω; IR(meas) = 1 mA;...
