BAW56W
BAW56W is SWITCHING DIODE manufactured by MLS Microelectronics.
Features
- Fast Switching Speed
- For General Purpose Switching Applications
- High Conductance

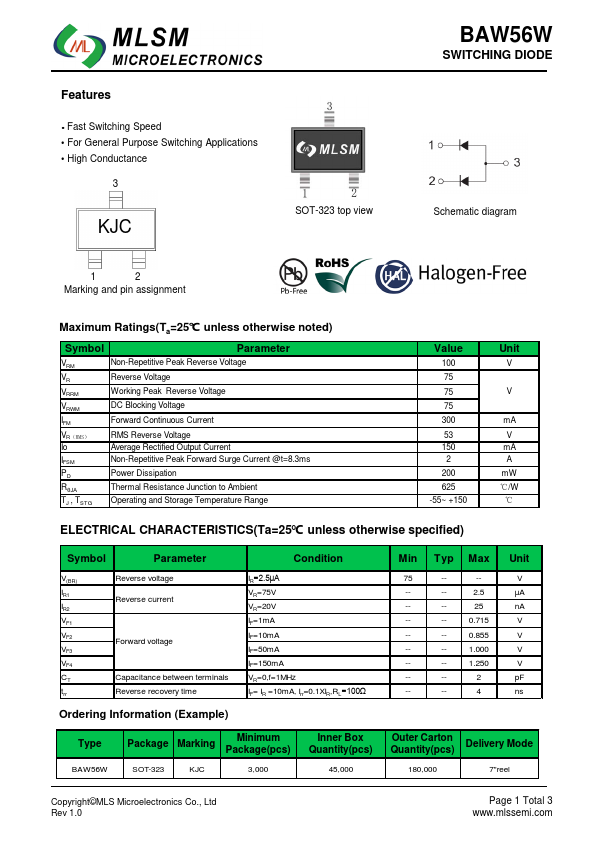

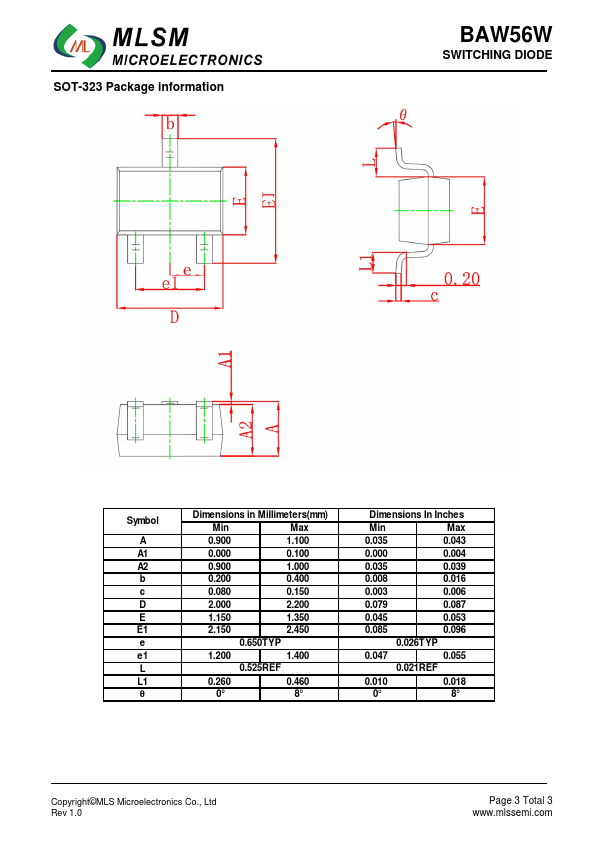

SOT-323 top view
SWITCHING DIODE
Schematic diagram
Marking and pin assignment
Maximum Ratings(Ta=25℃ unless otherwise noted)
Symbol
Parameter
VRM VR VRRM VRWM
Non-Repetitive Peak Reverse Voltage Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage
Forward Continuous Current
VR（RMS） Io
RMS Reverse Voltage Average Rectified Output Current
IFSM
Non-Repetitive Peak Forward Surge Current @t=8.3ms
Power Dissipation
RθJA TJ , TSTG
Thermal Resistance Junction to Ambient Operating and Storage Temperature Range
Value
100 75 75 75 300 53 150 2 200...
