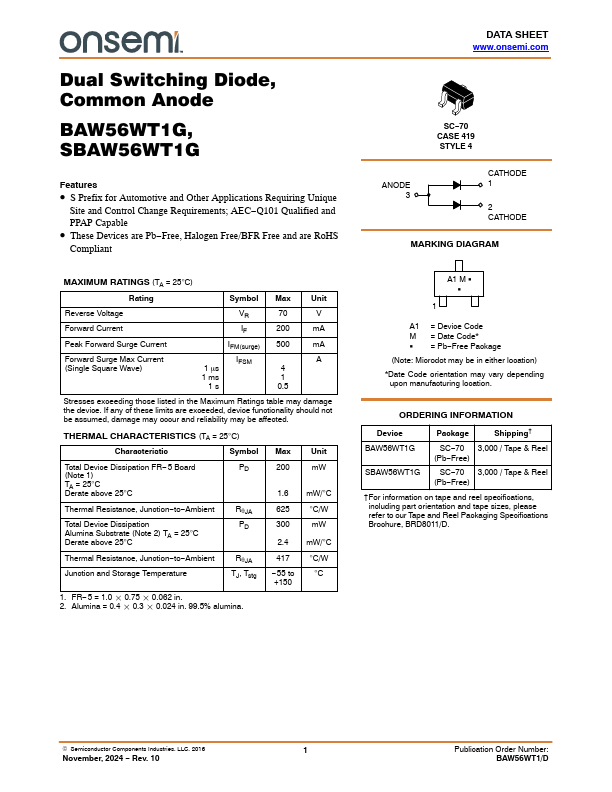

Datasheet Summary
Dual Switching Diode, mon Anode
BAW56WT1G, SBAW56WT1G
Features
- S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS (TA = 25°C) Rating
Symbol Max Unit
Reverse Voltage
Forward Current
Peak Forward Surge Current
Forward Surge Max Current (Single Square Wave)
200 mA
IFM(surge) 500 mA
IFSM
1 ms
1 ms
1s
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality should not be assumed, damage may...
