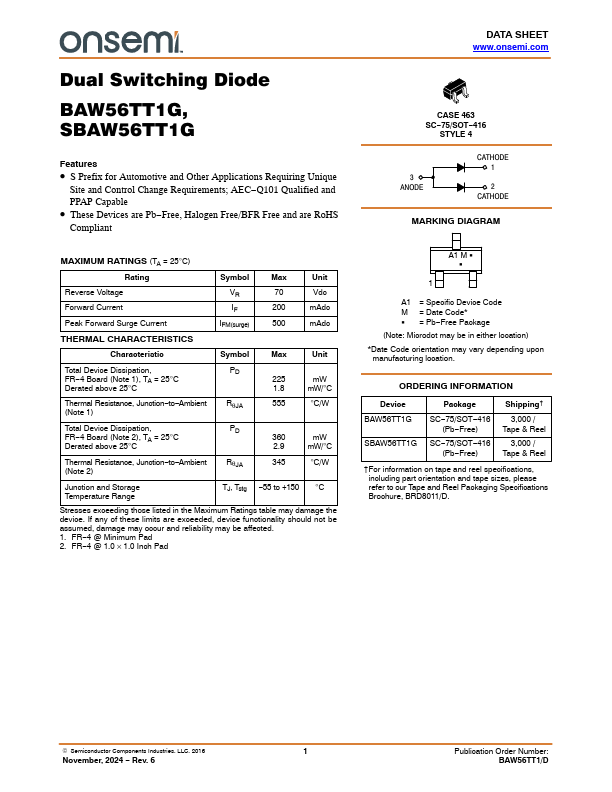

Dual Switching Diode
BAW56TT1G, SBAW56TT1G
Features
- S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC- Q101 Qualified and PPAP Capable
- These Devices are Pb- Free, Halogen Free/BFR Free and are RoHS pliant
MAXIMUM RATINGS (TA = 25°C) Rating
Symbol
Max
Unit
Reverse Voltage Forward Current Peak Forward Surge Current THERMAL CHARACTERISTICS
Vdc
200 mAdc
IFM(surge)
500 mAdc
Characteristic
Symbol
Max
Unit
Total Device Dissipation, FR- 4 Board (Note 1), TA = 25°C Derated above 25°C
225 mW
1.8 mW/°C
Thermal Resistance, Junction- to- Ambient (Note 1)
RθJA
°C/W
Total Device Dissipation, FR- 4 Board...
