MMST5401 - 160V PNP SMALL SIGNAL TRANSISTOR

Key Features

  • Epitaxial Planar Die Construction.
  • Ultra-Small Surface Mount Package.
  • Complementary PNP Type: MMST5551.
  • Ideal for Low Power Amplification and Switching.
  • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note 4) SOT323 MMST5401 160V PNP SMALL SIGNAL.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MMST5401 PNP General Purpose Transistor GME
MMST5401 PNP Transistors Kexin
MMST5401 BIPOLAR TRANSISTORS Rectron
MMST5401 PNP Small Signal Transistors MCC
MMST5401 PNP General Purpose Transistor Multicomp

Other Datasheets by Diodes Incorporated

Part Number Description
MMST2222A 40V NPN SMALL SIGNAL TRANSISTOR
MMST2907A 60V PNP SMALL SIGNAL TRANSISTOR
MMST3904 60V NPN TRANSISTOR
MMST3906 40V PNP SMALL SIGNAL TRANSISTOR
MMST4124 NPN SMALL SIGNAL SURFACE MOUNT TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

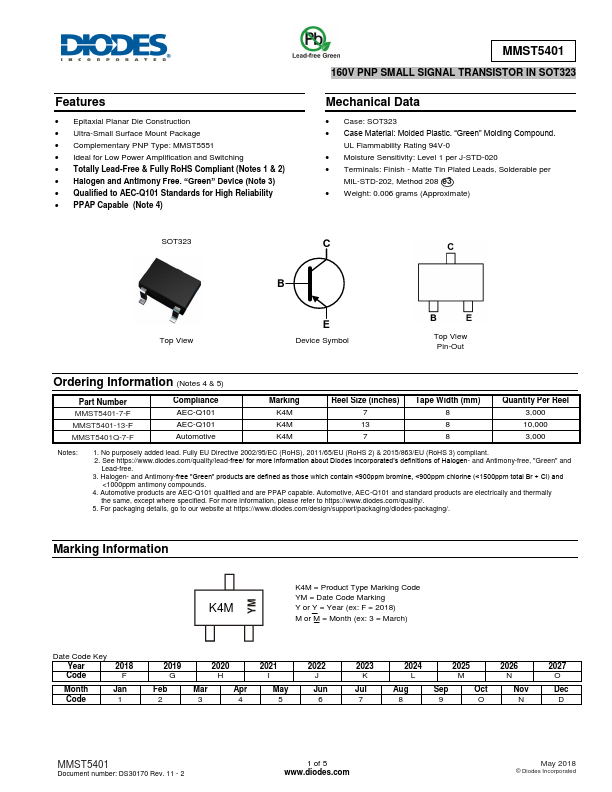

Features • Epitaxial Planar Die Construction • Ultra-Small Surface Mount Package • Complementary PNP Type: MMST5551 • Ideal for Low Power Amplification and Switching • Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2) • Halogen and Antimony Free. “Green” Device (Note 3) • Qualified to AEC-Q101 Standards for High Reliability • PPAP Capable (Note 4) SOT323 MMST5401 160V PNP SMALL SIGNAL TRANSISTOR IN SOT323 Mechanical Data • Case: SOT323 • Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0 • Moisture Sensitivity: Level 1 per J-STD-020 • Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208 e3 • Weight: 0.
