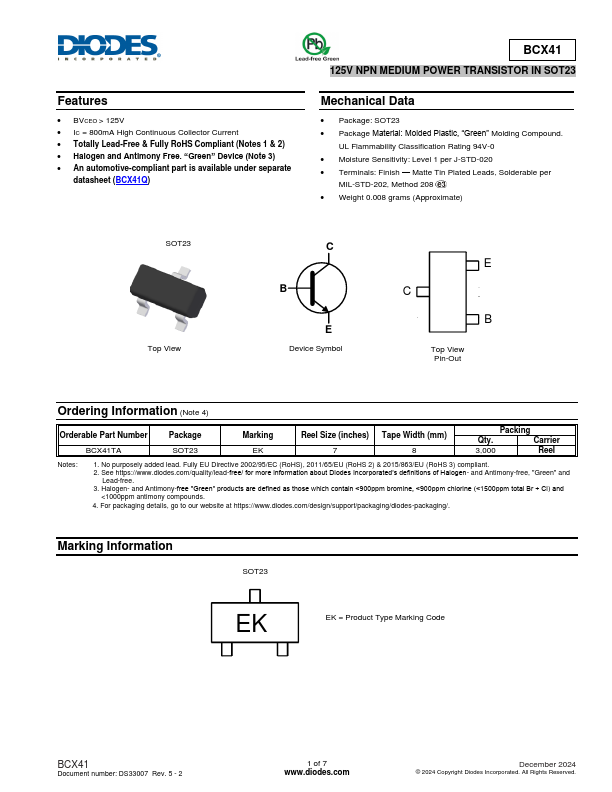

Diodes Incorporated BCX41
125V NPN MEDIUM POWER TRANSISTOR
| Part No. | BCX41 |
|---|---|
| Datasheet | BCX41 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 125V NPN MEDIUM POWER TRANSISTOR |
| Buy | Stock & Price |
FEATURES
● BVCEO > 125V● IC = 800mA High Continuous Collector Current
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● An automotive-compliant part is available under separate datasheet (BCX41Q) BCX41 125V NPN MEDIUM POWER TRANSISTOR IN SOT23
MECHANICAL DATA
● Package: SOT23● Package Material: Molded Plastic, “Green” Molding Compound. UL Flammability Classification Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish — Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight 0.008 grams (Approximate) SOT23 Top View C B E Device Symbol E C B Top View Pin-Out Ordering Information (Note 4) Orderable Part Number BCX41TA Package SOT23 Marking EK Reel Size (inches) Tape Width (mm) 7 8 Packing Qty. Carrier 3,000 Reel Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant. 2. See for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free.
