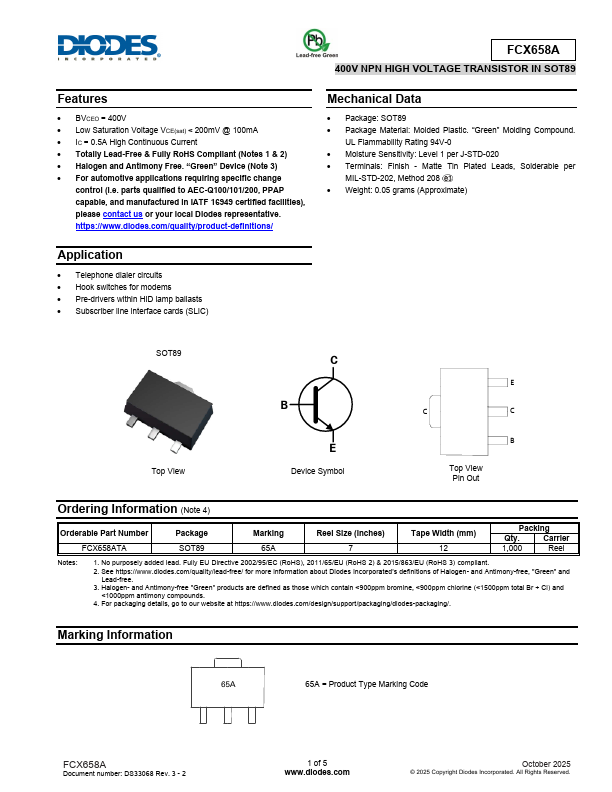

Diodes Incorporated FCX658A
400V NPN HIGH VOLTAGE TRANSISTOR
| Part No. | FCX658A |
|---|---|
| Datasheet | FCX658A Download |
| Manufacturer |  Diodes Incorporated |
| Description | 400V NPN HIGH VOLTAGE TRANSISTOR |
| Buy | Stock & Price |
FEATURES
● BVCEO = 400V● Low Saturation Voltage VCE(sat) < 200mV @ 100mA
● IC = 0.5A High Continuous Current
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.
MECHANICAL DATA
● Package: SOT89● Package Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish - Matte Tin Plated Leads, Solderable per MIL-STD-202, Method 208
● Weight: 0.05 grams (Approximate) Application
● Telephone dialer circuits
● Hook switches for modems
● Pre-drivers within HID lamp ballasts
● Subscriber line interface cards (SLIC) SOT89 Top View C B E Device Symbol E C C B Top View Pin Out Ordering Information (Note 4) Orderable Part Number FCX658ATA Package SOT89 Marking 65A Reel Size (inches) 7 Tape Width (mm) 12 Packing Qty.
