FCX658A Datasheet NPN Silicon Planar Medium Power High Voltage Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN Silicon Planar Medium Power High Voltage Transistor.

Datasheet Details

Part number	FCX658A
Manufacturer	Kexin Semiconductor
File Size	50.42 KB
Description	NPN Silicon Planar Medium Power High Voltage Transistor
Datasheet	FCX658A-Kexin.pdf

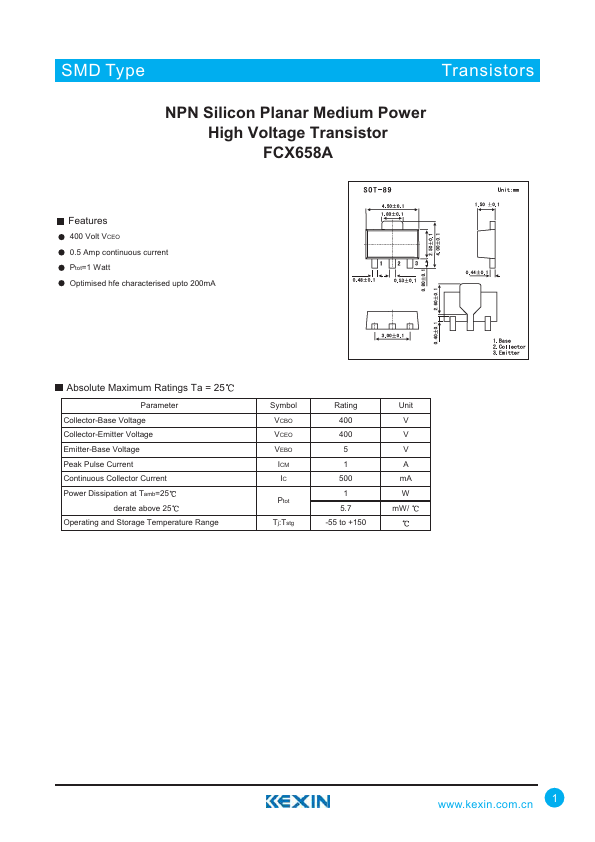

400 Volt VCEO 0.5 Amp continuous current Ptot=1 Watt Optimised hfe characterised upto 200mA Absolute Maximum Ratings Ta = 25 Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25 derate above 25 Operating and Storage Temperature Range Symbol VCBO VCEO VEBO ICM IC Ptot Tj:Tstg Rating 400 400 5 1 500 1 5.7 -55 to +150 Unit V V V A mA W mW/ www. kexin. com. cn 1 SMD Type Transistors FCX658A.
