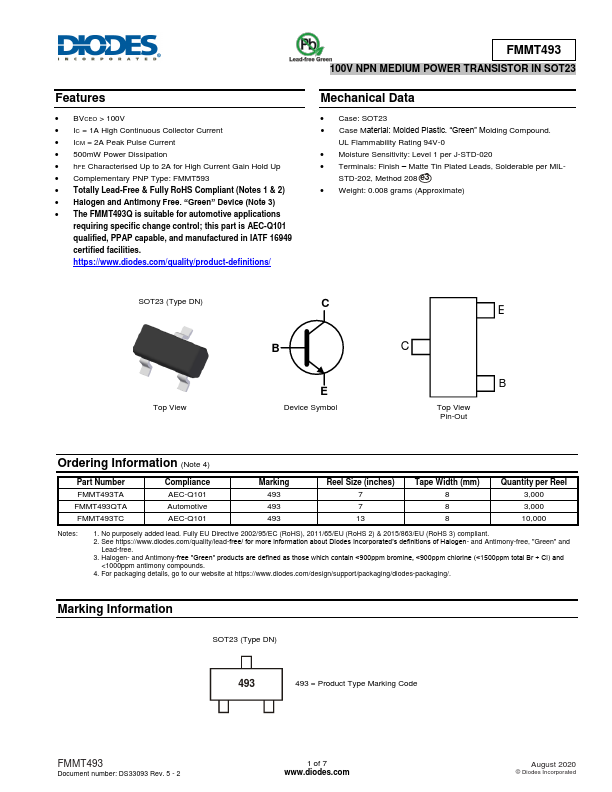

Diodes Incorporated FMMT493
The FMMT493Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.| Part No. | FMMT493 |
|---|---|
| Datasheet | FMMT493 Download |
| Manufacturer |  Diodes Incorporated |
| Description | 100V NPN MEDIUM POWER TRANSISTOR |
| Buy | Stock & Price |
FEATURES
● BVCEO > 100V● IC = 1A High Continuous Collector Current
● ICM = 2A Peak Pulse Current
● 500mW Power Dissipation
● hFE Characterised Up to 2A for High Current Gain Hold Up
● Complementary PNP Type: FMMT593
● Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
● Halogen and Antimony Free. “Green” Device (Note 3)
● FMMT493 100V NPN MEDIUM POWER TRANSISTOR IN SOT23
MECHANICAL DATA
● Case: SOT23● Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0
● Moisture Sensitivity: Level 1 per J-STD-020
● Terminals: Finish – Matte Tin Plated Leads, Solderable per MIL- STD-202, Method 208 e3
● Weight: 0.008 grams (Approximate) SOT23 (Type DN) Top View C B E Device Symbol E C BB Top View Pin-Out Ordering Information (Note 4) Part Number FMMT493TA FMMT493QTA FMMT493TC Compliance AEC-Q101 Automotive AEC-Q101 Marking 493 493 493 Reel Size (inches) 7 7 13 Tape Width (mm) 8 8 8 Quantity per Reel 3,000 3,000 10,000 Notes: 1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS), 2011/65/EU (RoHS 2) & 2015/863/EU (RoHS 3) compliant.
