Semiware FMMT493
NPN Plastic-Encapsulate Transistor
| Part No. | FMMT493 |
|---|---|
| Datasheet | FMMT493 Download |
| Manufacturer |  Semiware |
| Description | NPN Plastic-Encapsulate Transistor |
| Buy | Stock & Price |

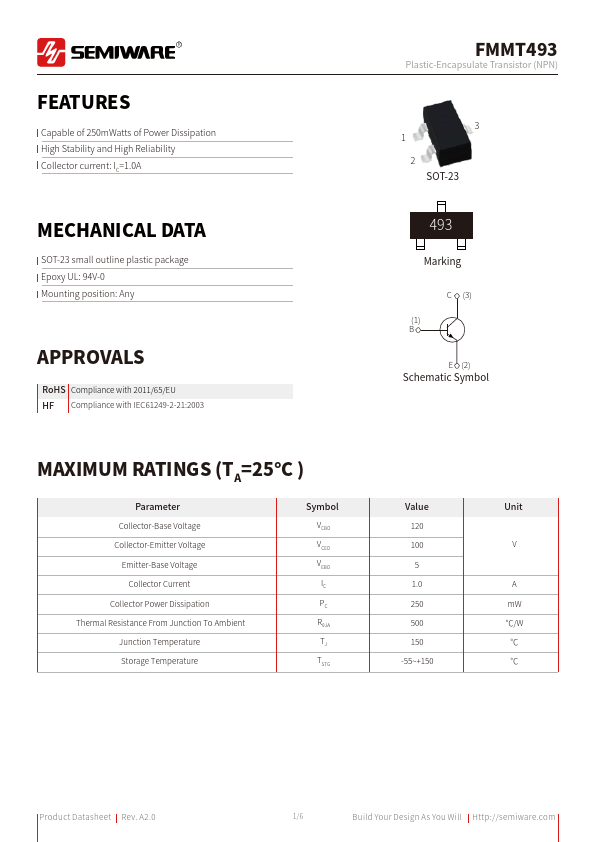

FEATURES
Capable of 250mWatts of Power Dissipation High Stability and High Reliability Collector current: IC=1.0AMECHANICAL DATA
SOT-23 small outline plastic package Epoxy UL: 94V-0 Mounting position: Any APPROVALS RoHS Compliance with 2011/65/EU HF Compliance with IEC61249-2-21:2003MAXIMUM RATINGS
(TA=25°C ) Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Junction Temperature Storage Temperature Symbol VCBO VCEO VEBO IC PC RθJA TJ TSTG FMMT493 Plastic-Encapsulate Transistor (NPN) 3 1 2 SOT-23 493 Marking C (3) (1) B E (2) Schematic Symbol Value 120 100 5 1.0 250 500 150 -55~+150 Unit V A mW ℃/W ℃ ℃ Product Datasheet Rev. A2.0 1/6 Build Your Design As You Will R FMMT493 Plastic-Encapsulate Transistor (NPN)ELECTRICAL CHARACTERISTICS
(TA=25°C) Parameter Collector-base breakdown voltage Collector-emitter breakdown voltage Emitter-base breakdown voltage Collector-Bas...
