FZT1051A - NPN MEDIUM POWER HIGH GAIN TRANSISTOR

Key Features

  • BVCEO > 40V.
  • IC = 5A High Continuous Collector Current.
  • ICM = 20A Peak Pulse Current.
  • Low Saturation Voltage VCE(sat) < 120mV @ 1A.
  • RSAT = 50mΩ @ 5A for a Low Equivalent On-Resistance.
  • hFE Specified up to 10A for a High Gain Hold-Up.
  • Complementary PNP Type: FZT1151A.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case:.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZT1048A NPN Transistors Kexin
FZT2222A SOT223 NPN SILICON PLANAR SWITCHING TRANSISTOR Zetex Semiconductors
FZT2907 SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR ETC
FZT2907A SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR ETC
FZT3019 NPN General Purpose Amplifier Fairchild Semiconductor

Other Datasheets by Diodes Incorporated

Part Number Description
FZT1053A 75V NPN MEDIUM POWER HIGH GAIN TRANSISTOR
FZT1047A 10V NPN MEDIUM POWER TRANSISTOR
FZT1048A 17.5V NPN MEDIUM POWER HIGH GAIN TRANSISTOR
FZT1049A 25V NPN MEDIUM POWER TRANSISTOR
FZT1147A 12V PNP MEDIUM POWER TRANSISTOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

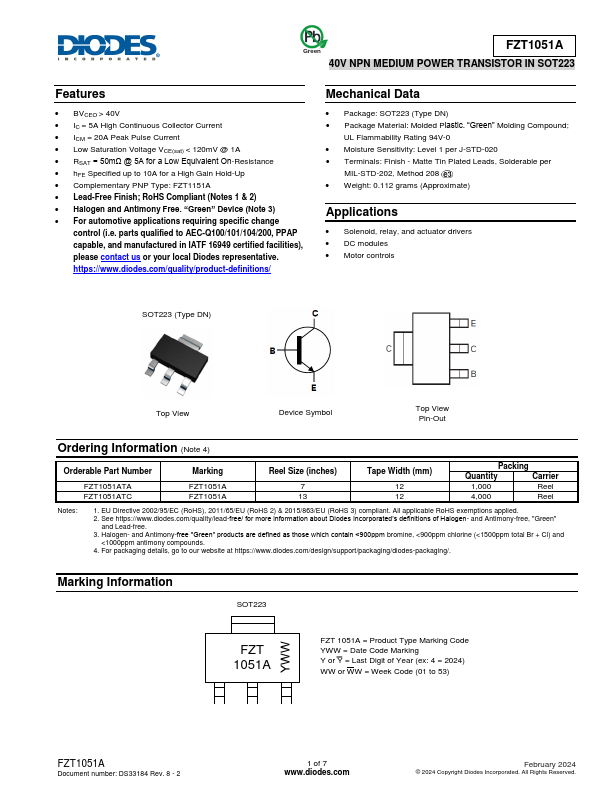

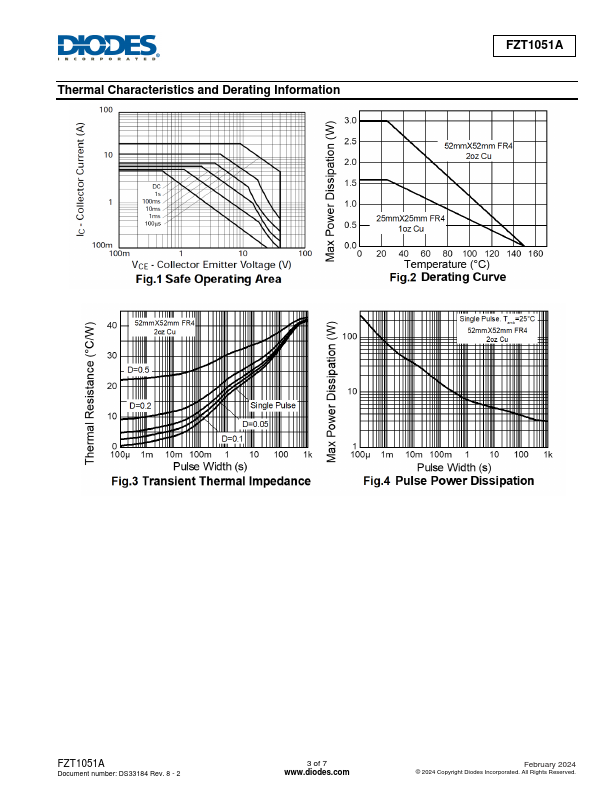

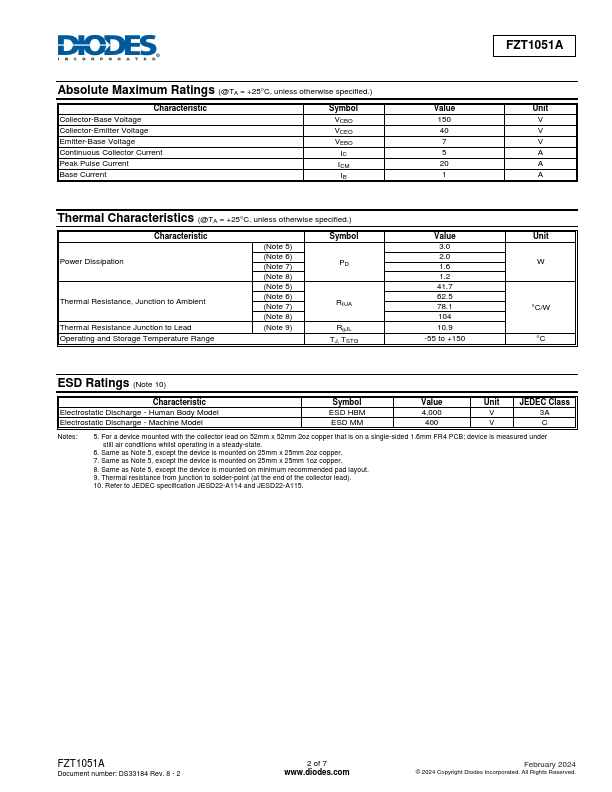

A Product Line of Diodes Incorporated Green FZT1051A 40V NPN MEDIUM POWER HIGH GAIN TRANSISTOR IN SOT223 Features  BVCEO > 40V  IC = 5A High Continuous Collector Current  ICM = 20A Peak Pulse Current  Low Saturation Voltage VCE(sat) < 120mV @ 1A  RSAT = 50mΩ @ 5A for a Low Equivalent On-Resistance  hFE Specified up to 10A for a High Gain Hold-Up  Complementary PNP Type: FZT1151A  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data  Case: SOT223  Case Material: Molded Plastic.
