FZT649 - 25V NPN HIGH PERFORMANCE TRANSISTOR

Product Overview

Diodes

Part number	FZT649
Manufacturer	DIODES
File Size	495.27 KB
Description	25V NPN HIGH PERFORMANCE TRANSISTOR
Datasheet	FZT649 Datasheet

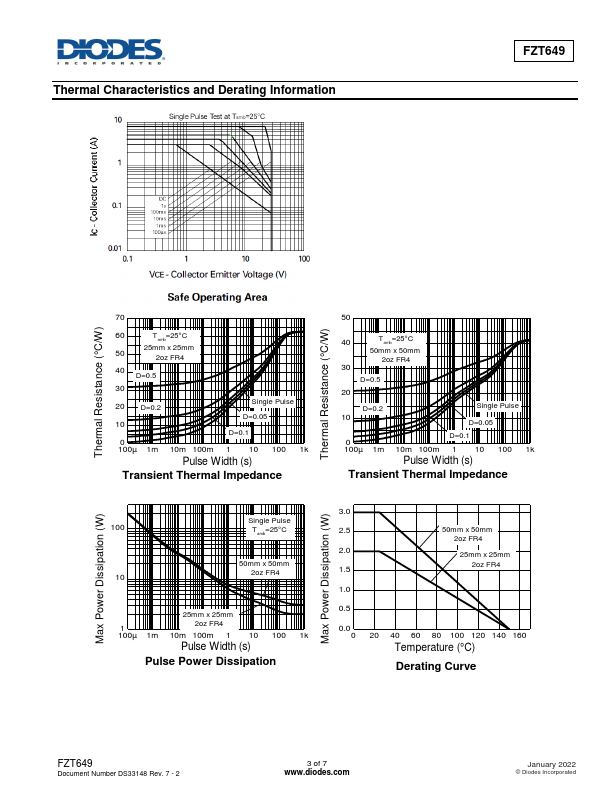

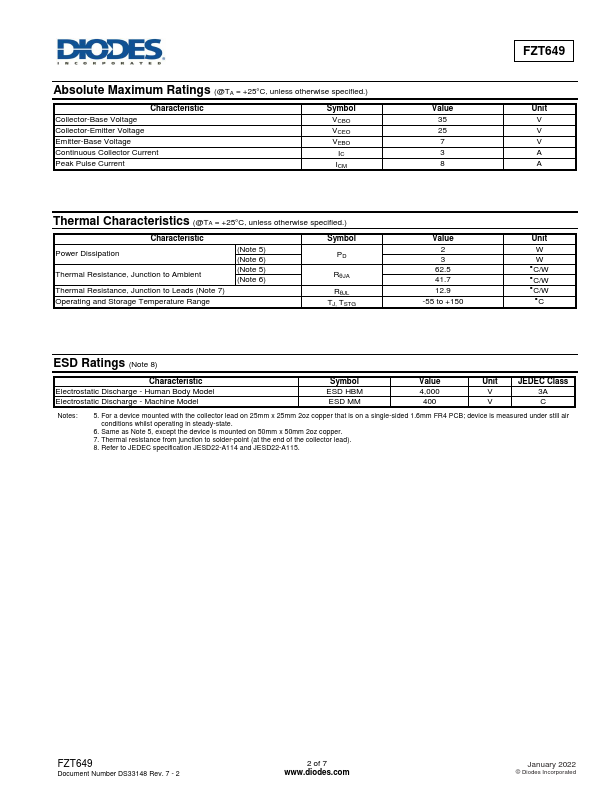

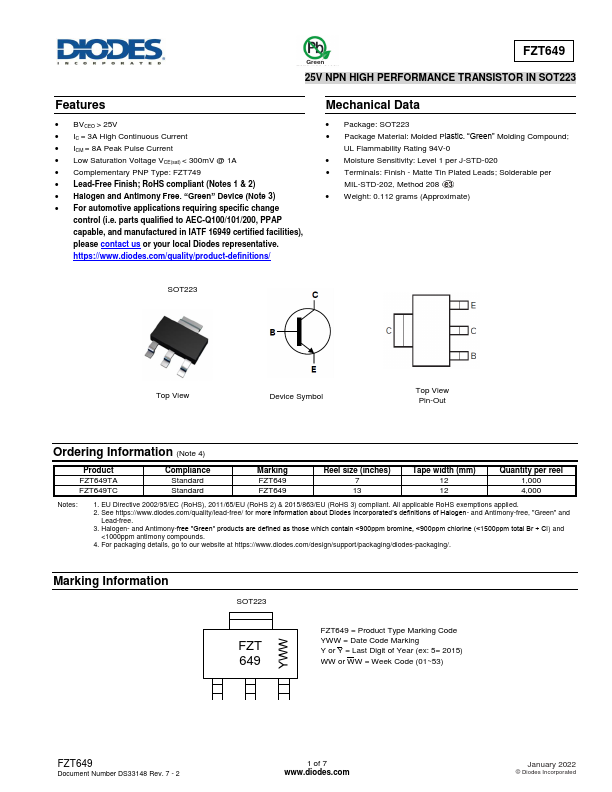

Additional preview pages of the FZT649 datasheet.

BVCEO > 25V.
IC = 3A High Continuous Current.
ICM = 8A Peak Pulse Current.
Low Saturation Voltage VCE(sat) < 300mV @ 1A.
Complementary PNP Type: FZT749.
Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
Halogen and Antimony Free. “Green” Device (Note 3).
Qualified to AEC-Q101 Standards for High Reliability A Product Line of Diodes Incorporated Green FZT649 25V NPN HIGH.
