FZT649 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

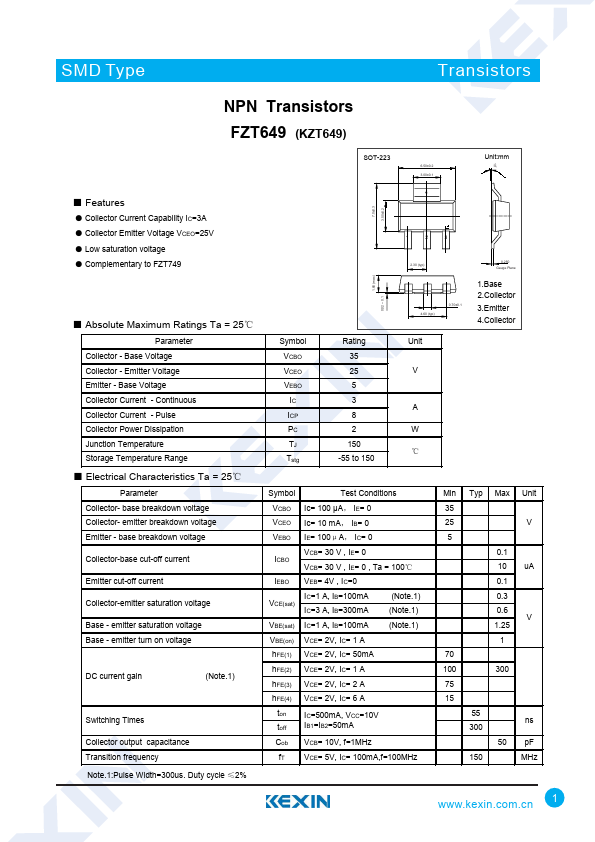

Overview: SMD Type Transistors NPN Transistors FZT649 (KZT649) ■.

📥 Download Datasheet

Key Features

  • s.
  • Collector Current Capability IC=3A.
  • Collector Emitter Voltage VCEO=25V.
  • Low saturation voltage.
  • Complementary to FZT749.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature Range.
  • Electrical Characteristics Ta = 25℃ Parameter Collector- base breakdown voltage Collector- e.
