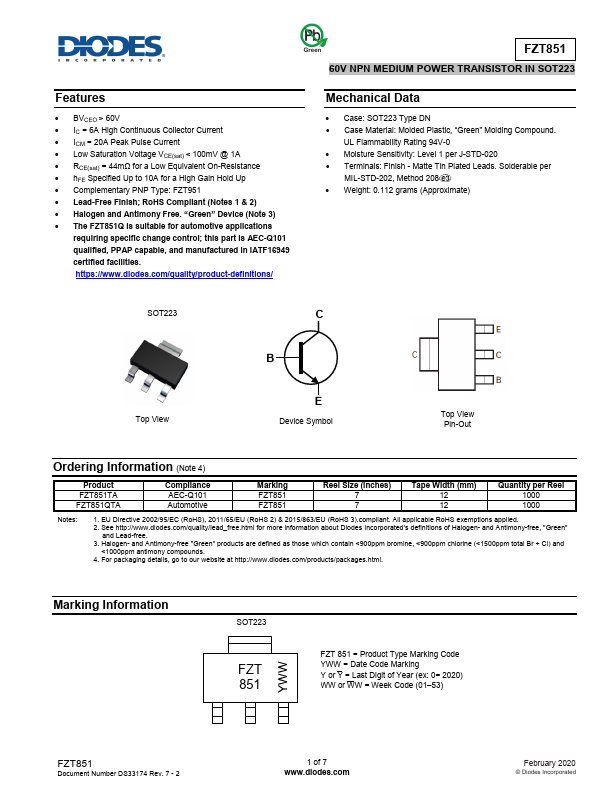

FZT851 Datasheet | Diodes Incorporated

Features - BVCEO > 60V - IC = 6A High Continuous Collector Current - ICM = 20A Peak Pulse Current - Low Saturation Voltage VCE(sat) < 100m V @ 1A - RCE(sat) = 44mΩ for a Low Equivalent On-Resistance - h FE Specified Up to 10A for a High Gain Hold Up - plementary PNP Type: FZT951 - Lead-Free Finish; Ro HS pliant (Notes 1 & 2) - Halogen and Antimony Free. “Green” Device (Note 3) - The FZT851Q is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://.diodes./quality/product-definitions/ Mechanical Data - Case: SOT223 Type DN - Case Material: Molded Plastic, “Green” Molding pound. UL Flammability Rating 94V-0 - Moisture Sensitivity: Level 1 per J-STD-020 - Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 - Weight: 0.112 grams (Approximate) SOT223 Top View Device Symbol Top View Pin-Out Ordering Information (Note 4) Product FZT851TA FZT851QTA pliance AEC-Q101 Automotive Marking FZT851 FZT851 Reel Size (inches) 7 7 Tape Width (mm) 12 12 Quantity per Reel 1000 1000 Notes: 1. EU Directive 2002/95/EC (Ro HS), 2011/65/EU (Ro HS 2) & 2015/863/EU (Ro HS 3).pliant. All applicable Ro HS exemptions applied. 2. See http://.diodes./quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green" and Lead-free. 3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and <1000ppm antimony pounds. 4. For packaging details, go to our website at http://.diodes./products/packages.html. Marking Information SOT223 FZT...
