FZT851 Datasheet NPN Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors NPN Transistors FZT851 (KZT851) ■.

Datasheet Details

s.
Collector Current Capability IC=6A.
Collector Emitter Voltage VCEO=60V.

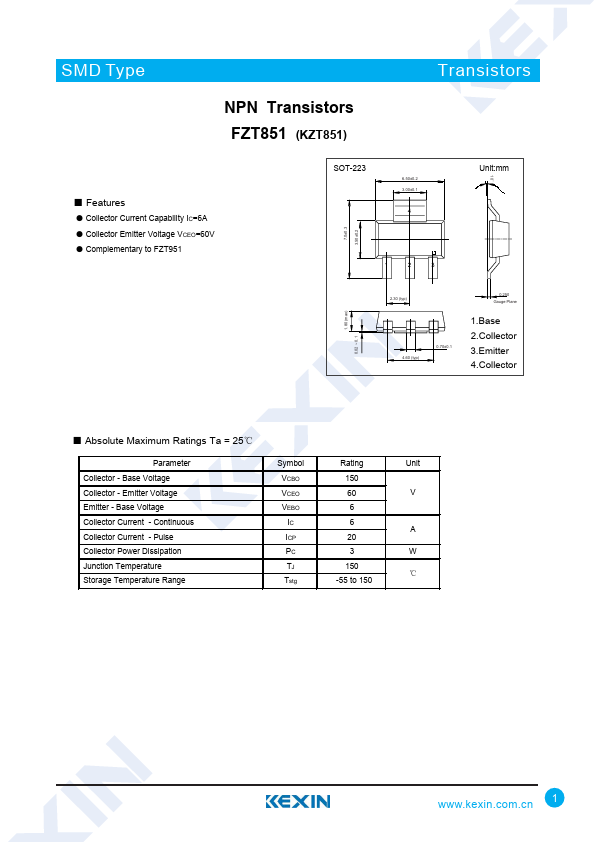

Complementary to FZT951 SOT-223 6.50±0.2 3.00±0.1 4 10b Unit:mm 7.0±0.3 3.50±0.2 1 2 3 1.80 (max) 0.02 ~ 0.1 2.30 (typ) 4.60 (typ) 0.70±0.1 0.250 Gauge Plane 1.Base 2.Collector 3.Emitter 4.Collector.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Pow.
