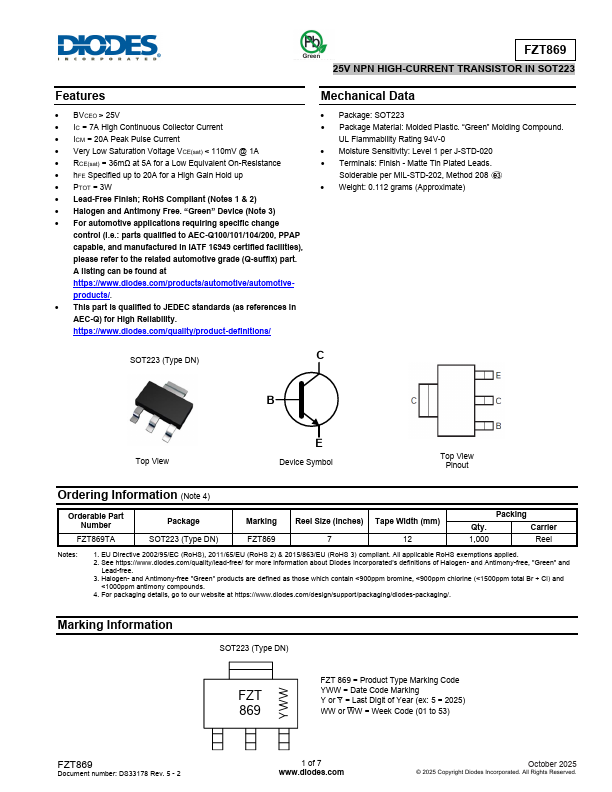

FZT869 - 25V NPN HIGH CURRENT TRANSISTOR

Features

  • BVCEO > 25V.
  • IC = 7A High Continuous Collector Current.
  • ICM = 20A Peak Pulse Current.
  • Very Low Saturation Voltage VCE(SAT) < 110mV @ 1A.
  • RCE(SAT) = 36mΩ at 5A for a Low Equivalent On-Resistance.
  • hFE Specified Up to 20A for a High Gain Hold Up.
  • PTOT = 3W.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability Mechanical Data.
  • Case: SOT223.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
FZT851 NPN Silicon Epitaxial Planar Transistor GME
FZT853 NPN Transistors Kexin
FZT1048A NPN Transistors Kexin
FZT2222A SOT223 NPN SILICON PLANAR SWITCHING TRANSISTOR Zetex Semiconductors
FZT2907 SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR ETC

Other Datasheets by Diodes Incorporated

Part Number Description
FZT849 30V NPN MEDIUM POWER HIGH CURRENT TRANSISTOR
FZT851 60V NPN MEDIUM POWER TRANSISTOR
FZT853 100V NPN MEDIUM POWER TRANSISTOR
FZT855 150V NPN MEDIUM POWER TRANSISTOR
FZT857 300V NPN MEDIUM POWER TRANSISTOR

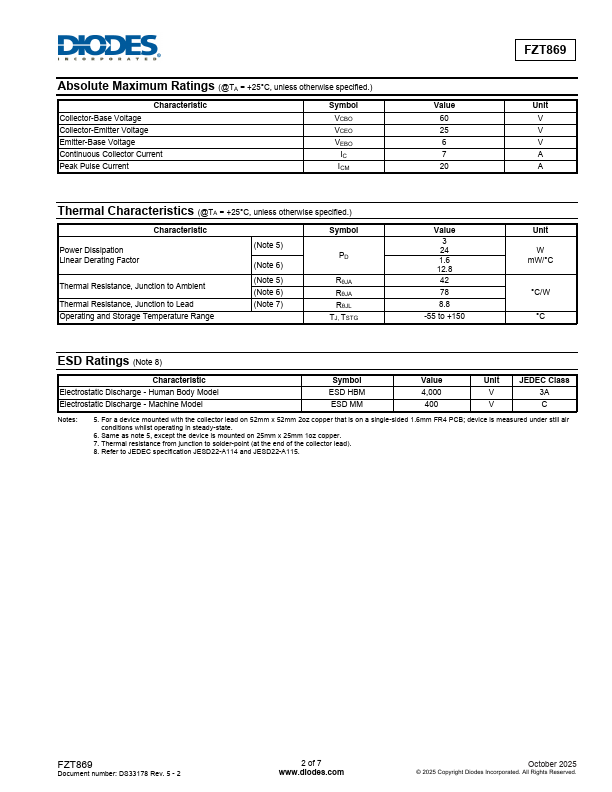

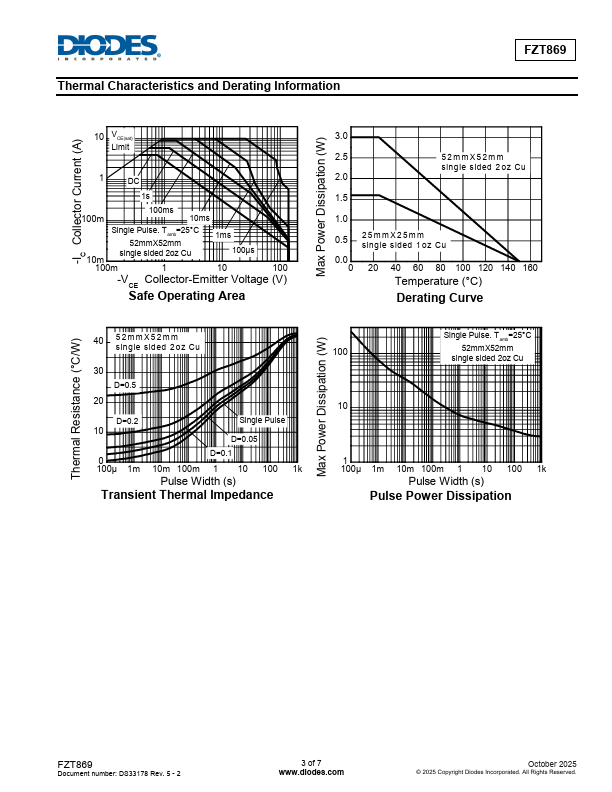

Full PDF Text Transcription

Click to expand full text
FZT869 Green 25V NPN HIGH CURRENT TRANSISTOR IN SOT223 Features  BVCEO > 25V  IC = 7A High Continuous Collector Current  ICM = 20A Peak Pulse Current  Very Low Saturation Voltage VCE(SAT) < 110mV @ 1A  RCE(SAT) = 36mΩ at 5A for a Low Equivalent On-Resistance  hFE Specified Up to 20A for a High Gain Hold Up  PTOT = 3W  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability Mechanical Data  Case: SOT223  Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish - Matte Tin Plated Leads. Solderable per MIL-STD-202, Method 208 e3  Weight: 0.
