FZT869
FZT869 is SOT223 NPN SILICON PLANAR HIGH CURRENT TRANSISTOR manufactured by Zetex Semiconductors.
FEATURES
- Extremely low equivalent on-resistance; RCE(sat)36mΩ at 5A
- 7 Amp continuous collector current (20 Amp peak)
- Very low saturation voltages
- Excellent gain charateristics specified upto 20 Amp
- Ptot =3 Watts
PARTMARKING DETAILS
- FZT869
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
VEBO
Peak Pulse Current
Continuous Collector Current
Power Dissipation at Tamb=25°C
Ptot
Operating and Storage Temperature Range
Tj:Tstg
-55 to +150
°C
- The power which can be dissipated assuming the device is mounted in a typical manner on a P.C.B. with copper equal to 4 inch square minimum
- 271

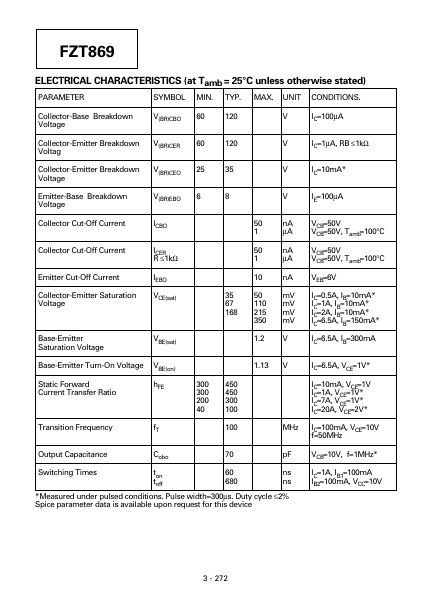

ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated)
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT CONDITIONS.
Collector-Base...
