FZT869 Datasheet NPN Silicon Planar High Current Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors 0.1max +0.05 0.90 -0.05 +0.15 1.65 -0.15 NPN Silicon Planar High Current (High Performance) Transistor.

📥 Download Datasheet

Key Features

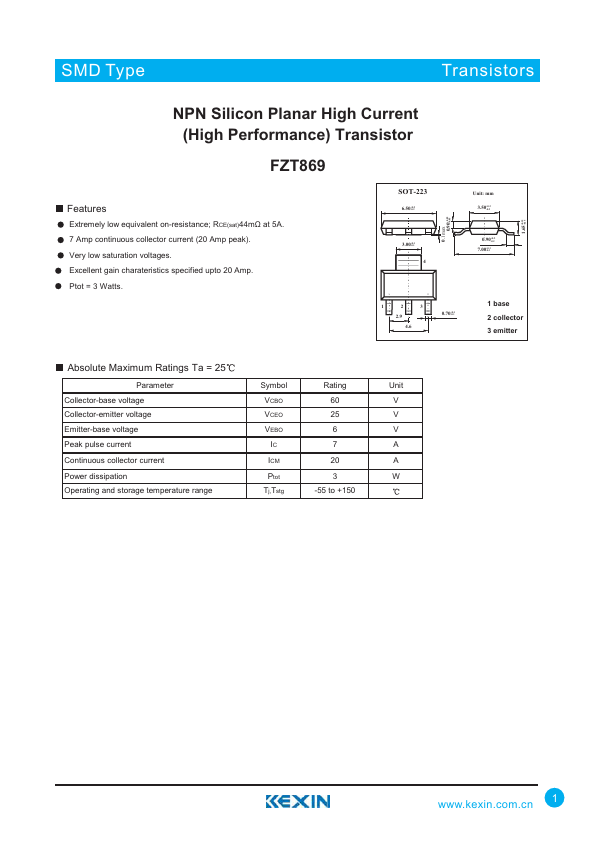

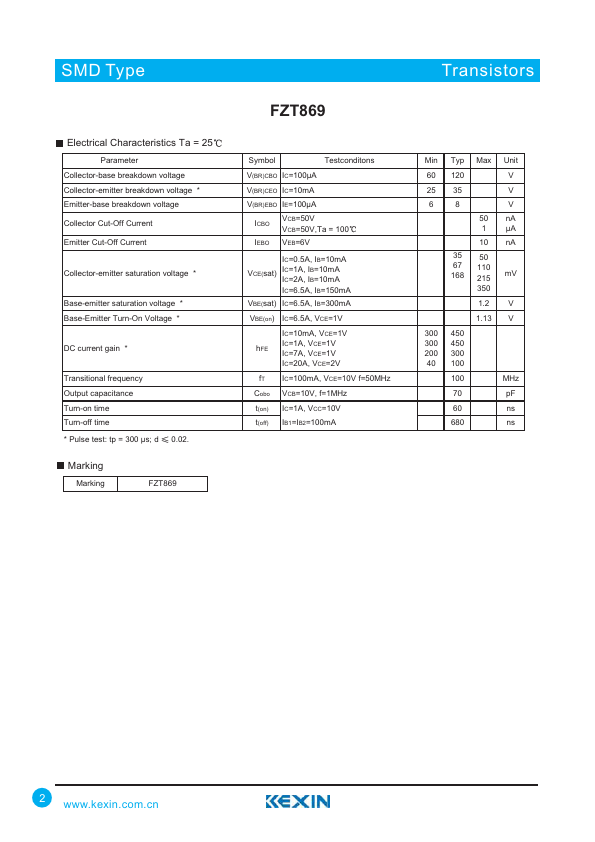

  • Extremely low equivalent on-resistance; RCE(sat)44mÙ at 5A. 7 Amp continuous collector current (20 Amp peak). Very low saturation voltages. Excellent gain charateristics specified upto 20 Amp. Ptot = 3 Watts. SOT-223 6.50+0.2 -0.2 3.00+0.1 -0.1 4 Unit: mm 3.50+0.2 -0.2 0.90+0.2 -0.2 7.00+0.3 -0.3 1 2 3 2.9 4.6 0.70+0.1 -0.1 1 base 2 collector 3 emitter Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak pulse current S.
