FZT953 - 100V PNP MEDIUM POWER TRANSISTOR

Datasheet Summary

Features

  • BVCEO > -100V.
  • IC = -5A High Continuous Collector Current.
  • ICM = -10A Peak Pulse Current.
  • Low Saturation Voltage VCE(SAT) < -115mV @ -1A.
  • RCE(SAT) = 75mΩ for a Low Equivalent On-Resistance.
  • hFE Specified up to -10A for a High Gain Hold-Up.
  • Complementary NPN Type: FZT853.
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2).
  • Halogen and Antimony Free. “Green” Device (Note 3).
  • Qualified to AEC-Q101 Standards for High Reliability.
  • PPAP Capable (Note.

📥 Download Datasheet

Datasheet preview – FZT953

Datasheet Details

Part number FZT953
Manufacturer DIODES
File Size 531.10 KB
Description 100V PNP MEDIUM POWER TRANSISTOR
Datasheet download datasheet FZT953 Datasheet

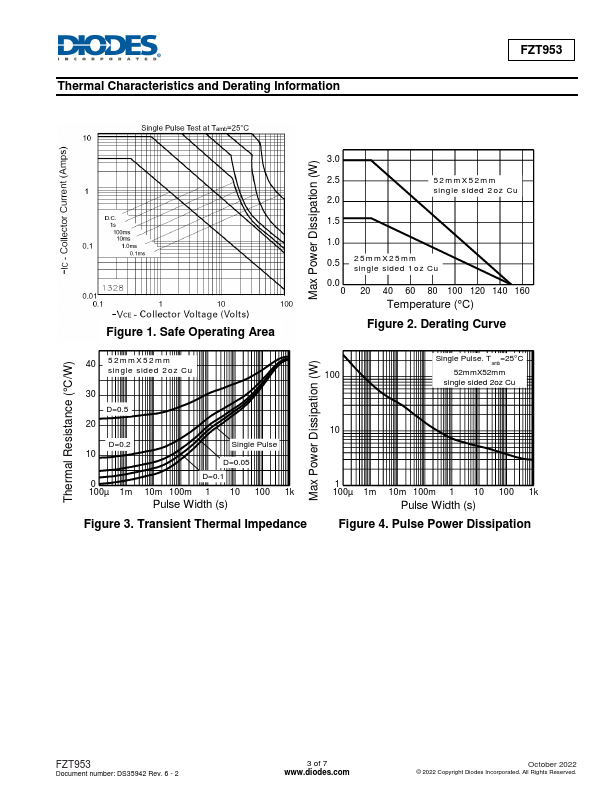

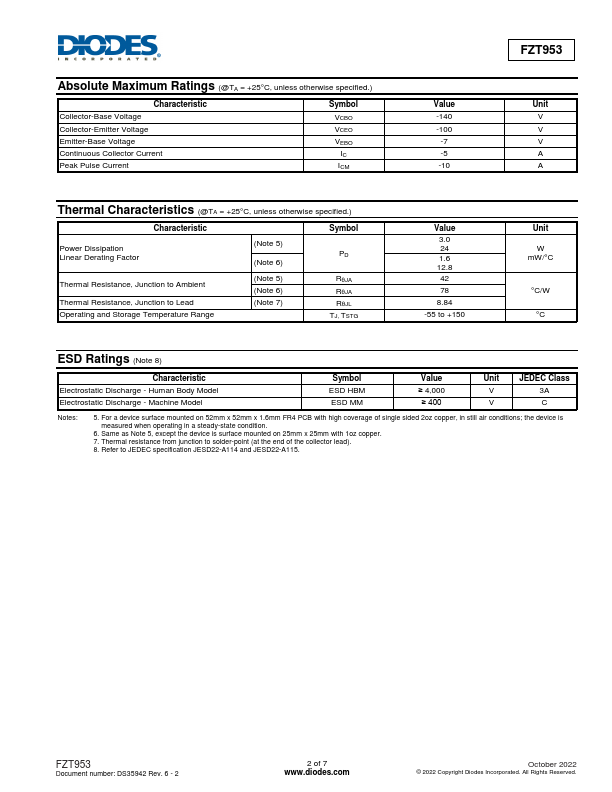

Additional preview pages of the FZT953 datasheet.

📁 Similar Datasheet

  • FZT953 - PNP Transistors (Kexin)
  • FZT958 - PNP Transistors (Kexin)
  • FZT1048A - NPN Transistors (Kexin)
  • FZT2222A - SOT223 NPN SILICON PLANAR SWITCHING TRANSISTOR (Zetex Semiconductors)
  • FZT2907 - SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR (ETC)
  • FZT2907A - SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR (ETC)
  • FZT3019 - NPN General Purpose Amplifier (Fairchild Semiconductor)
  • FZT4403 - SOT223 PNP SILICON PLANAR SWITCHING TRANSISTOR (ETC)
  • FZT458 - NPN Silicon Planar High Voltage Transistor (Guangdong Kexin Industrial)
  • FZT458 - NPN MEDIUM POWER TRANSISTOR (Diodes Incorporated)
Other Datasheets by Diodes
  • FZT951 - 60V PNP MEDIUM POWER TRANSISTOR
  • FZT955 - 140V PNP MEDIUM POWER TRANSISTOR
  • FZT956 - 200V PNP MEDIUM POWER TRANSISTOR
  • FZT957 - 300V PNP MEDIUM POWER TRANSISTOR
  • FZT958 - 400V PNP MEDIUM POWER TRANSISTOR
  • FZT948 - 20V PNP MEDIUM POWER TRANSISTOR
  • FZT9489 - PNP MEDIUM POWER TRANSISTOR
  • FZT949 - PNP MEDIUM POWER TRANSISTOR

Full PDF Text Transcription

Click to expand full text

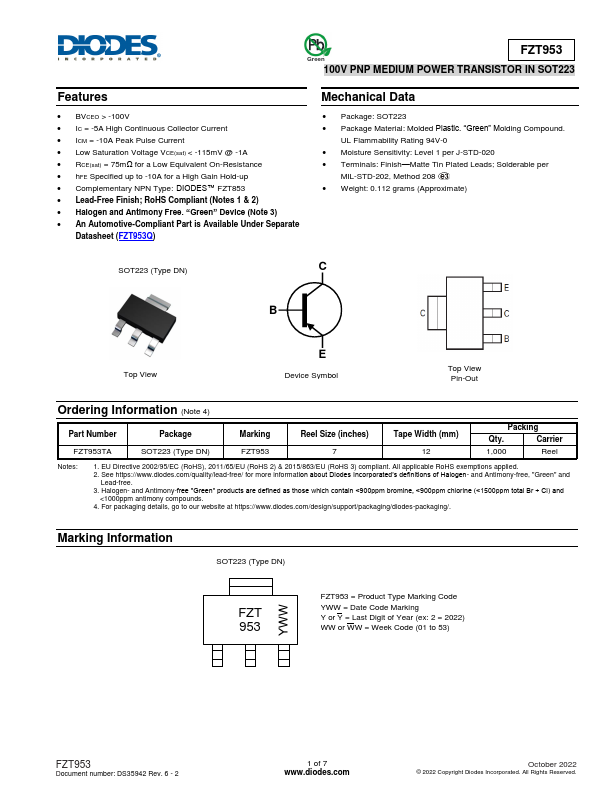

Features  BVCEO > -100V  IC = -5A High Continuous Collector Current  ICM = -10A Peak Pulse Current  Low Saturation Voltage VCE(SAT) < -115mV @ -1A  RCE(SAT) = 75mΩ for a Low Equivalent On-Resistance  hFE Specified up to -10A for a High Gain Hold-Up  Complementary NPN Type: FZT853  Lead-Free Finish; RoHS Compliant (Notes 1 & 2)  Halogen and Antimony Free. “Green” Device (Note 3)  Qualified to AEC-Q101 Standards for High Reliability  PPAP Capable (Note 4) FZT953 Green 100V PNP MEDIUM POWER TRANSISTOR IN SOT223 Mechanical Data  Case: SOT223  Case Material: Molded Plastic. “Green” Molding Compound. UL Flammability Rating 94V-0  Moisture Sensitivity: Level 1 per J-STD-020  Terminals: Finish - Matte Tin Plated Leads; Solderable per MIL-STD-202, Method 208 e3  Weight: 0.
