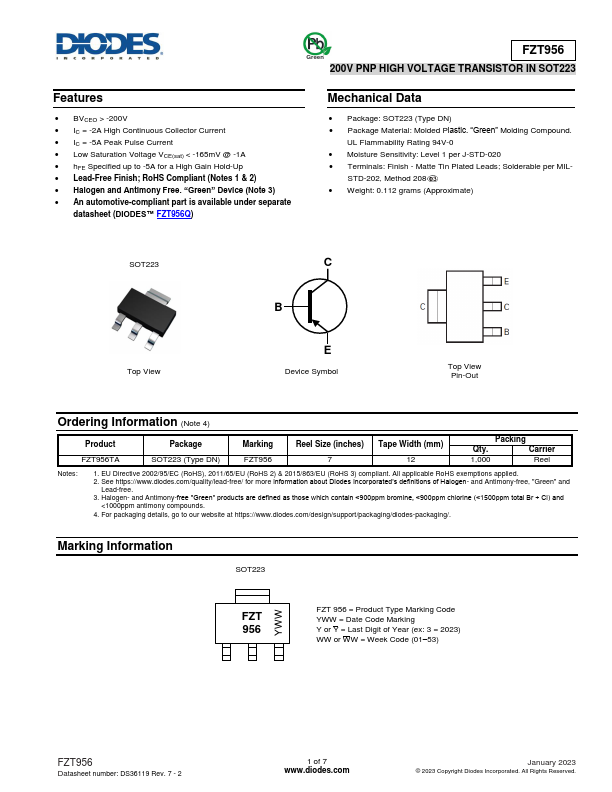

FZT956 Overview
FZT956 Green 200V PNP HIGH VOLTAGE TRANSISTOR IN SOT223.
FZT956 Key Features
- BVCEO > -200V
- IC = -2A High Continuous Collector Current
- IC = -5A Peak Pulse Current
- Low Saturation Voltage VCE(sat) < -165mV @ -1A
- hFE Specified up to -5A for a High Gain Hold-Up
- Lead-Free Finish; RoHS pliant (Notes 1 & 2)
- Halogen and Antimony Free. “Green” Device (Note 3)
- An automotive-pliant part is available under separate
- Package: SOT223 (Type DN)
- Package Material: Molded Plastic. “Green” Molding pound
