EC50117 - 1A Low Dropout Positive Voltage Regulator

Datasheet Summary

Features

  • The EC50117 Series are available in fixed and adjustable output voltage versions. Over current and thermal overload protection are integrated onto the chip. Output current will decrease while it reaches the preset current or temperature limit. The dropout voltage is specified at 1.2V Maximum at full rated output current. EC50117 Series provide excellent regulation over variations due to changes in line, load and temperature. EC50117 Series are three terminal regulators and available in popular.

📥 Download Datasheet

Datasheet preview – EC50117

Datasheet Details

Part number EC50117
Manufacturer E-CMOS
File Size 905.30 KB
Description 1A Low Dropout Positive Voltage Regulator
Datasheet download datasheet EC50117 Datasheet

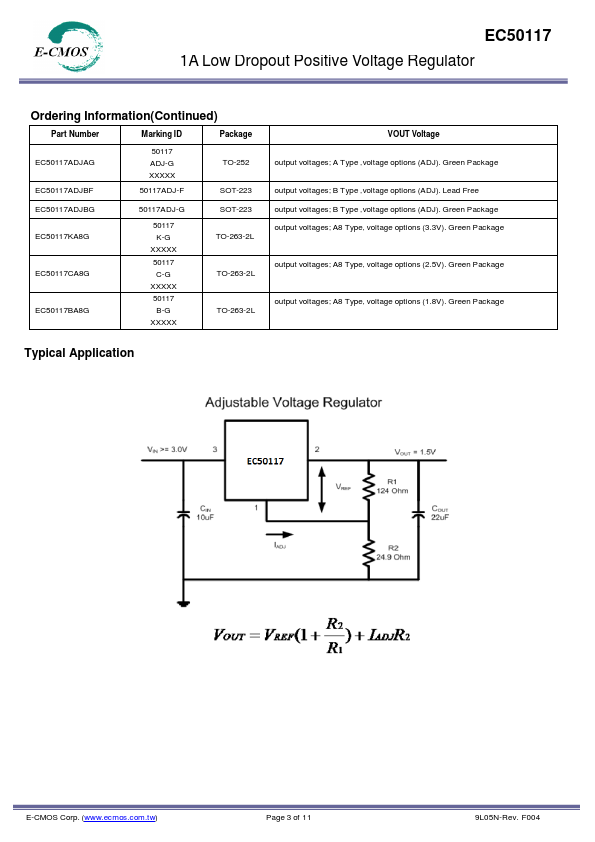

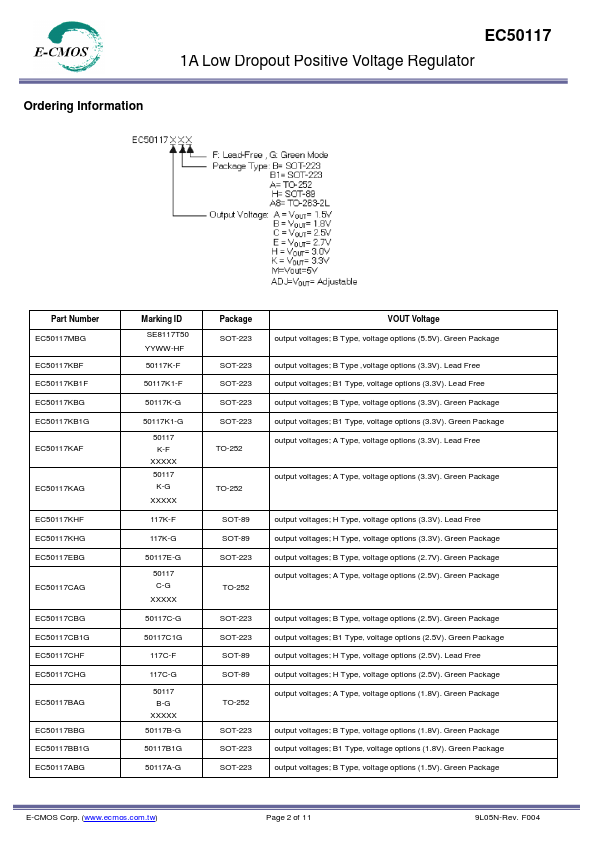

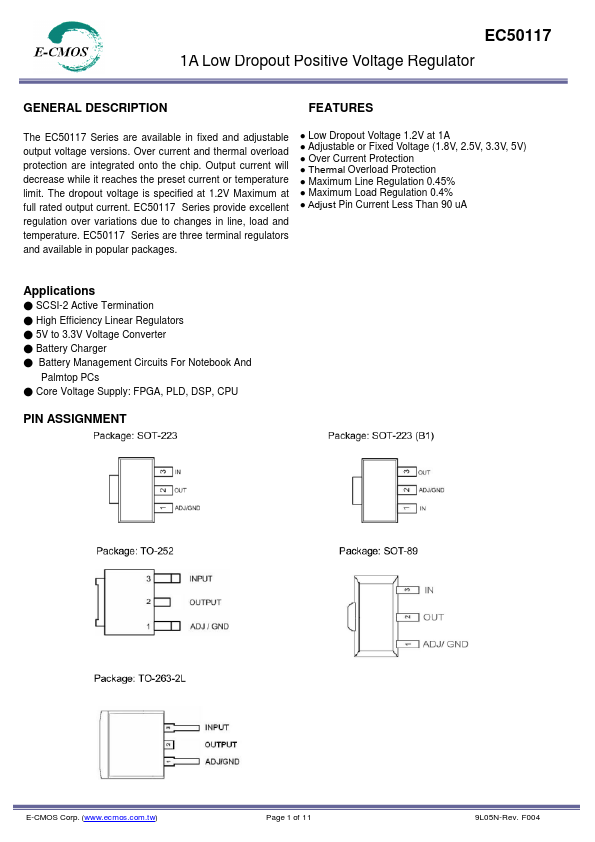

Additional preview pages of the EC50117 datasheet.
