EC50117C - 1A Low Dropout Positive Voltage Regulator

Datasheet Summary

Features

  • The EC50117C Series are available in fixed and adjustable output voltage versions. Over current and thermal overload protection are integrated onto the chip. Output current will decrease while it reaches the preset current or temperature limit. The dropout voltage is specified at 1.2V Maximum at full rated output current. EC50117C Series provide excellent regulation over variations due to changes in line, load and temperature. EC50117C Series are three terminal regulators and available in popul.

📥 Download Datasheet

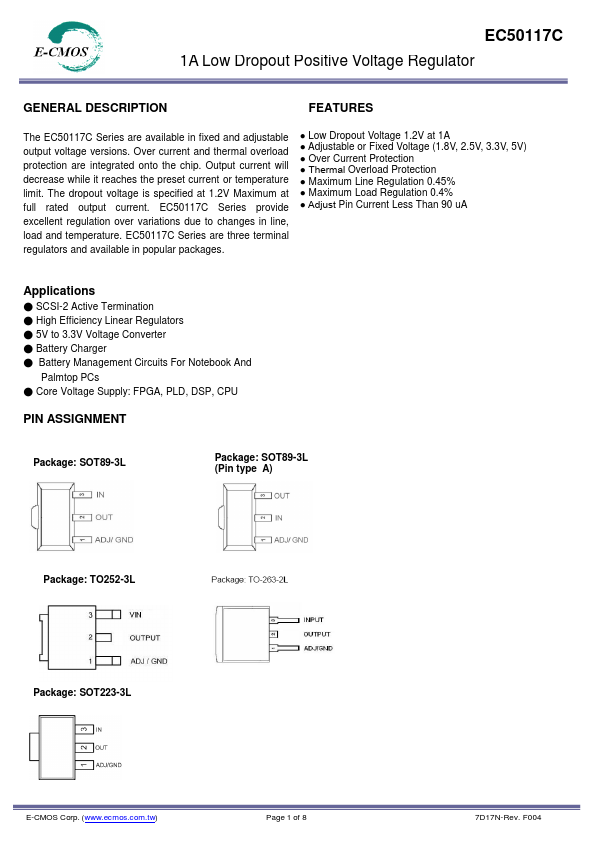

Datasheet preview – EC50117C

Datasheet Details

Part number EC50117C
Manufacturer E-CMOS
File Size 920.56 KB
Description 1A Low Dropout Positive Voltage Regulator
Datasheet download datasheet EC50117C Datasheet

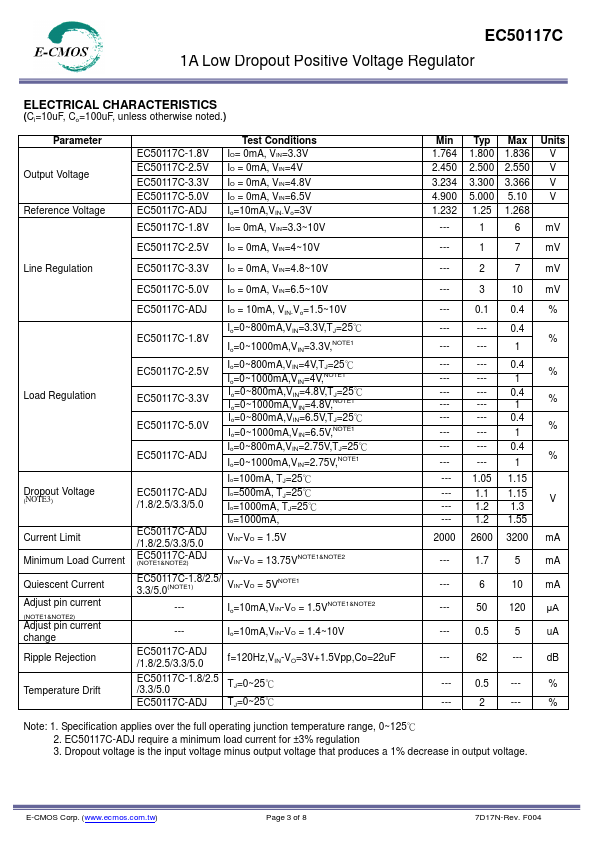

Additional preview pages of the EC50117C datasheet.

📁 Similar Datasheet

  • EC50 - Gas Triode (Mullard)
  • EC50 - Triode (Philips)
  • EC50 - Thyratron (LA RADIOTECHNIQUE)
  • EC52 - Short Wave Triode (Mullard)
  • EC53 - Miniature Ultra Short Wave Triode (Mullard)
  • EC55 - Triode (LA RADIOTECHNIQUE)
  • EC55 - UHF Disc Seal Triode (ETC)
  • EC55 - UHF Disc Seal Triode (Philips)
  • EC56 - Disc Seal Triode (ETC)
  • EC56 - Disc Seal Triode (Philips)
Other Datasheets by E-CMOS
  • EC50117 - 1A Low Dropout Positive Voltage Regulator
  • EC5420 - High Slew Rate Rail-to-Rail Quad Operational Amplifiers
  • EC5462 - High Slew Rate Rail-to-Rail Dual Operational Amplifiers
  • EC5534 - 18V 100mA Output Current Rail-to-Rail Quad Operational Amplifiers
  • EC5565 - 4+1 Channel Voltage Buffers
  • EC5569 - 8+1 Channel Voltage Buffers
  • EC5575 - 14+1 Channel Voltage Buffers
  • EC5575A - 14+1 Channels Voltage Buffer with OTP/OCP for TFT LCD

Full PDF Text Transcription

Click to expand full text
EC50117C 1A Low Dropout Positive Voltage Regulator GENERAL DESCRIPTION FEATURES The EC50117C Series are available in fixed and adjustable output voltage versions. Over current and thermal overload protection are integrated onto the chip. Output current will decrease while it reaches the preset current or temperature limit. The dropout voltage is specified at 1.2V Maximum at full rated output current. EC50117C Series provide excellent regulation over variations due to changes in line, load and temperature. EC50117C Series are three terminal regulators and available in popular packages. ● Low Dropout Voltage 1.2V at 1A ● Adjustable or Fixed Voltage (1.8V, 2.5V, 3.3V, 5V) ● Over Current Protection ● Thermal Overload Protection ● Maximum Line Regulation 0.45% ● Maximum Load Regulation 0.
