EJW3655 - High Efficiency 3A Multi-Cells Li-Ion Battery Charger

General Description

The EJW3655 is a buck boost converter targets HVDC fast charging system.

The EJW3655 supports 1 to 3 cells Li-ion battery, the full charge voltage and charge current can be programmed through external resistor.

The EJW3655 implements the Buck Boost converter with an H-bridge.

Key Features

  • Integrate low RDS(on) power MOSFET.
  • Wide input range:4.2V-20.0V, support 1 to 3 cells battery charge.
  • Full charge voltage: 1.2V-20.0V through external resistor or selectable by BATFB pin EJW3655A(4.2V/cell)/ EJW3655A1 (4.35V/cell).
  • High efficiency buck-boost transition.
  • 450kHz Switching frequency.
  • Programmable charge current, up to 3A.
  • Quiescent current:.

📥 Download Datasheet

Datasheet Details

Part number EJW3655
Manufacturer E-CMOS
File Size 1.10 MB
Description High Efficiency 3A Multi-Cells Li-Ion Battery Charger
Datasheet download datasheet EJW3655 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by E-CMOS

Part Number Description
EJW5015A 2A 40V Synchronous Step-Down Converter
EJW5068A 1.5A 20V Synchronous Buck LED Driver
EJW5116 3A 40V Asynchronous Step-Down Converter

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

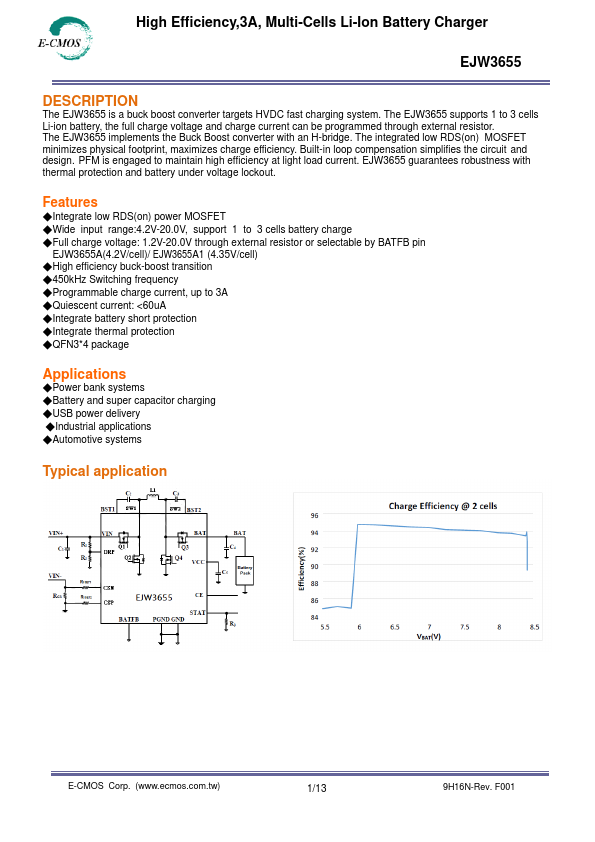

High Efficiency,3A, Multi-Cells Li-Ion Battery Charger EJW3655 DESCRIPTION The EJW3655 is a buck boost converter targets HVDC fast charging system. The EJW3655 supports 1 to 3 cells Li-ion battery, the full charge voltage and charge current can be programmed through external resistor. The EJW3655 implements the Buck Boost converter with an H-bridge. The integrated low RDS(on) MOSFET minimizes physical footprint, maximizes charge efficiency. Built-in loop compensation simplifies the circuit and design. PFM is engaged to maintain high efficiency at light load current. EJW3655 guarantees robustness with thermal protection and battery under voltage lockout. Features ◆Integrate low RDS(on) power MOSFET ◆Wide input range:4.2V-20.0V, support 1 to 3 cells battery charge ◆Full charge voltage: 1.
