EJW5116 - 3A 40V Asynchronous Step-Down Converter

General Description

The EJW5116 is a current mode monolithic buck switching regulator.

Operating with an input range of 4.5-40V, the EJW5116 delivers 3A of continuous output current with an integrated high side N-Channel MOSFET.

Key Features

  • 4.5V to 40V operating input range.
  • 3A output current.
  • Up to 94% efficiency.
  • High efficiency (>78%) at light load.
  • Internal Soft-Start.
  • Adjustable switch frequency.
  • Input under-voltage lockout.
  • Start-up current run-away protection.
  • Output short protection.
  • Feedback short protection.
  • Thermal protection.
  • Available in SOP8 and ESOP8 package.

📥 Download Datasheet

Datasheet Details

Part number EJW5116
Manufacturer E-CMOS
File Size 617.40 KB
Description 3A 40V Asynchronous Step-Down Converter
Datasheet download datasheet EJW5116 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by E-CMOS

Part Number Description
EJW5015A 2A 40V Synchronous Step-Down Converter
EJW5068A 1.5A 20V Synchronous Buck LED Driver
EJW3655 High Efficiency 3A Multi-Cells Li-Ion Battery Charger

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

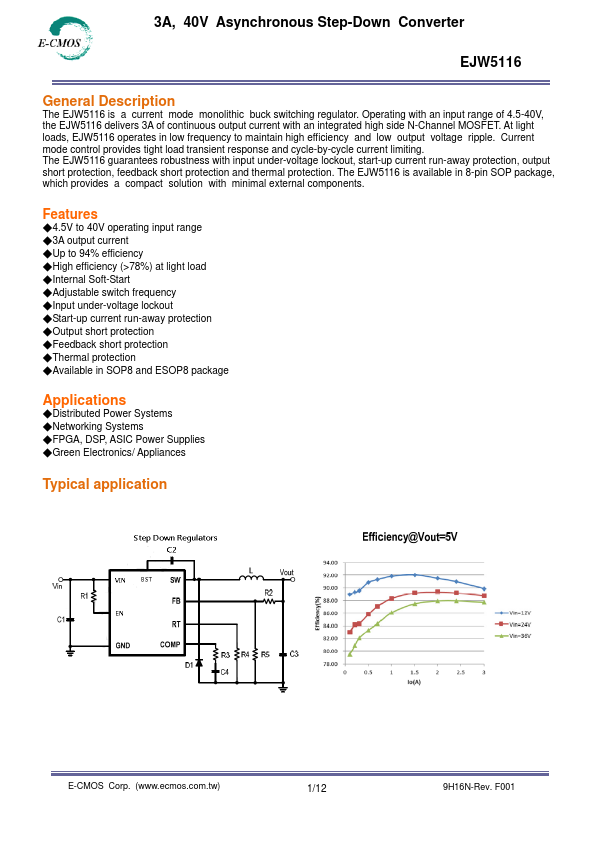

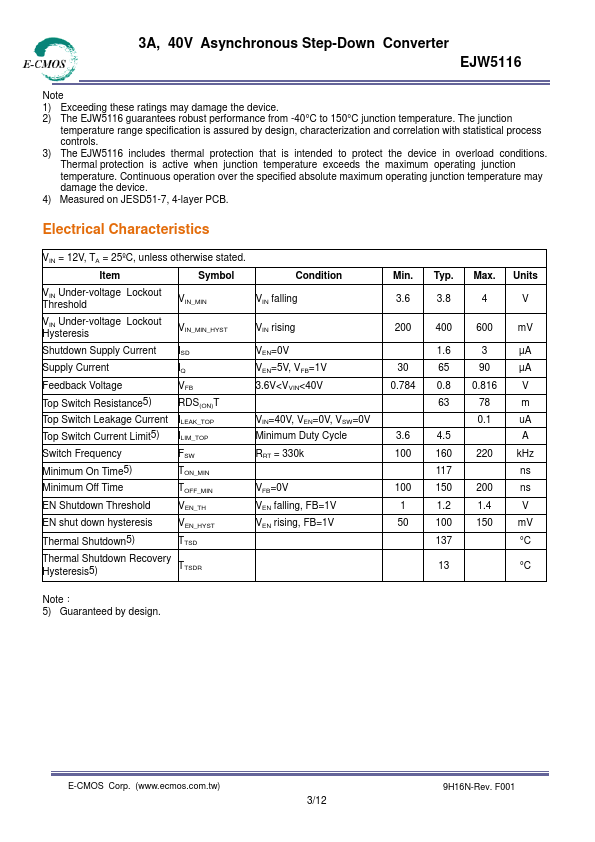

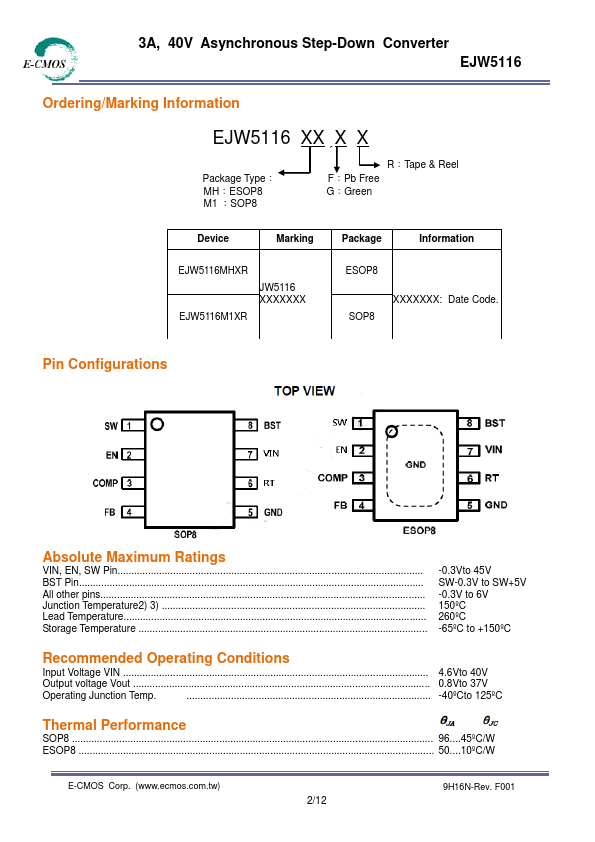

3A, 40V Asynchronous Step-Down Converter EJW5116 General Description The EJW5116 is a current mode monolithic buck switching regulator. Operating with an input range of 4.5-40V, the EJW5116 delivers 3A of continuous output current with an integrated high side N-Channel MOSFET. At light loads, EJW5116 operates in low frequency to maintain high efficiency and low output voltage ripple. Current mode control provides tight load transient response and cycle-by-cycle current limiting. The EJW5116 guarantees robustness with input under-voltage lockout, start-up current run-away protection, output short protection, feedback short protection and thermal protection. The EJW5116 is available in 8-pin SOP package, which provides a compact solution with minimal external components. Features ◆4.
